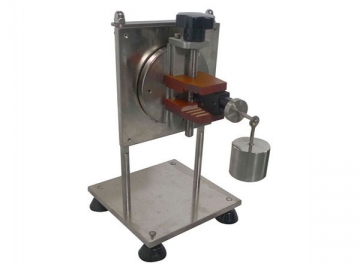

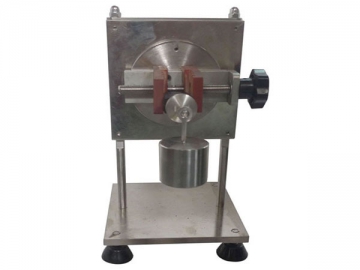

Lateral Strain Test Apparatus HC9906
Standard
IEC 60884-1 2013 clause 13.14
Application
This device is used to check whether any damage to the socket-outlets ratings up to 16A and 250V when an insert ed appliance applies lateral strain.
Test Sample
Socket-outlets
Feature
Made according to standard dimension requirements, used to check the mechanical strength of the socket hole.

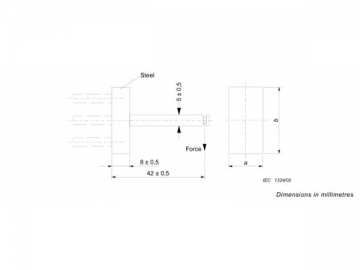

Note 1: The dimensions a and b should be chosen according to the appropriate standard sheets
Note 2: Dimensions and arrangement of pins in compliance with standard sheets
Parameters

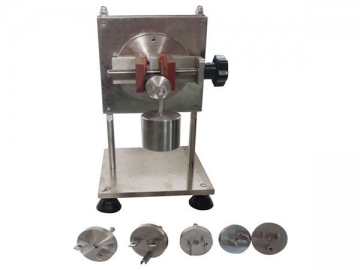

1. Provide 3 test plugs according to relevant standard
2. Weight: 5N
3. Test: The test is made 4 times, turn through 90° after each test.
