20691 90° Elbow Male Metric Fittings, 60° Cone Seat

20691 90° Elbow Male Metric Fittings, 60° Cone Seat
20691 90° Elbow Male Metric Fittings, 60° Cone Seat
: http://fittings-en.com/3-1-seamless-pipe-elbow.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel 90° elbow male metric fittings, 60° cone seat
  • Carbon steel 90° elbow male metric fittings, 60° cone seat

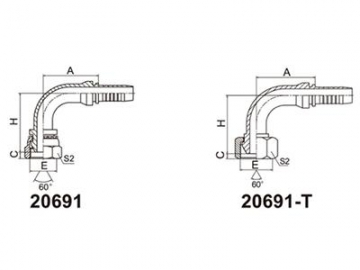

20691 90° Elbow Male Metric Fittings, 60° Cone Seat List
Part No. Thread Hose Bore Dimensions
E DN DASH A C H S2
20691-14-04 M14×1.5 6 04 30 5.5 37 19
20691-16-05 M16×1.5 8 05 33 5.5 40.5 22
20691-18-06 M18×1.5 10 06 35.3 5.5 43.8 24
20691-22-08 M22×1.5 12 08 41 6 52 27
20691-36-16 M36×2 25 16 78 6.5 76.5 41
20691-36-14T M36×2 22 14 71.2 6.5 67.5 41
20691-39-16T M39×2 25 16 76.7 6.5 74 46
20691-45-20T M45×2 32 20 91.5 8.5 85 55
20691-52-24T M52×2 40 24 109.4 10 99 60
Related
hose end, hose fittings, carbon steel fittings, stainless steel fittings
Related products
28691 Japanese Metric 90° Elbow Male Fittings, 60° Cone Seat
28691 Japanese Metric 90° Elbow Male Fittings, 60° Cone Seat

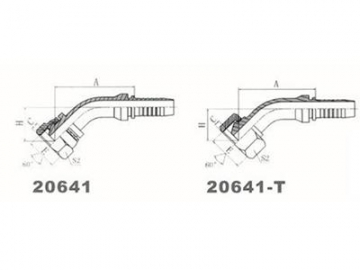

20641 45° Elbow Male Metric Fittings, 60° Cone Seat
