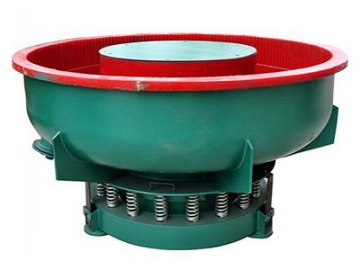

Round Bowl Vibratory Finishing Machine
While the round bowl vibratory finishing machine grinding and polishing, the abrasive touches and leaves the polished workpiece periodically through the changing speed and direction to grind its different parts. The abrasive and workpiece, driven by the vibration motor, moving simultaneously to finish the surface.
| Model | Capacity (L) | Motor Power (kw) | Speed (m/min) | Amplitude (mm) | Lining Thickness (mm) | Weight (kgs) | Size L*W*H (mm) | |
| CL-40A | 40 | 0.55 | 1450 | 0.8-3 | 6-12 | 65 | 600*500*600 | |
| CL-60A | 60 | 0.75-1.1 | 1450 | 0.8-3 | 6-12 | 100 | 700*640*700 | |
| CL-80A | 80 | 1.1 | 1450 | 0.8-3 | 6-12 | 110 | 840*640*740 | |
| CL-95A | 95 | 1.1 | 1450 | 0.8-3 | 6-12 | 125 | 860*800*750 | |
| CL-135A | 135 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 350 | 1150*1060*900 | |
| CL-150A | 150 | 2.2-3.0 | 1450 | 0.8-4 | 6-15 | 380 | 1150*1050*900 | |
| CL-350A | 350 | 5.5 | 1450 | 0.8-6 | 6-20 | 800 | 1450*1350*1050 | |
| CL-450A | 450 | 5.5 | 1450 | 0.8-6 | 6-20 | 1000 | 1550*1430*1050 | |
| CL-650A | 650 | 7.5 | 1450 | 0.8-8 | 6-20 | 1500 | 1900*1850*1300 |
