RFID Inlay

: http://jlrfidlabel.com/2-9-rfid-wet-inlay.html

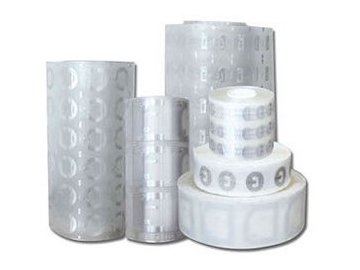

High frequency or ultra high frequency RFID inlay uses various chips including E42, 9662, NTAG, etc. These HF inlays and UHF inlays feature high sensitivity and high security performance. Each RFID inlay has TID code that helps identify and trace the product. Our RFID inlay can be customized on materials, sizes, packages, printing, and so on according to your requirements.

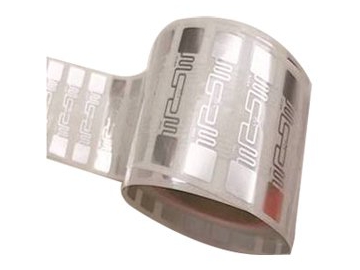

UHF Dry/Wet Inlay

● Basic Parameters
Types of	UHF passive RFID Tags
Working Frequency	860-960MHz
Protocol	ISO / IEC 18000-6C EPC Class1 Gen2
● Physical Parameters
Size	Flexible size (customized)
Material	PET etched aluminum antenna
Antenna	Aluminum etching antenna
Craft	None
● Performance Parameters
Chip	Alien H3, impinjM4D / M4E / M4QT / M5
Storage	Related to the chip
Operating modes	read and write
Data Retention	> 10 years
Write Endurance	100,000 views
Reading Distance	0-10m (Related to the chip,antenna and readers)
● Environmental Parameters
Operating temperature	(-25 ℃ ~ 55 ℃)
Storage temperature	(-30 ℃ ~ 65 ℃)
● Typical Applications
Applications	Logistics, Assets management, Retail management, Pharmaceutical management, Supply chain management
● Packaging
Package Information	Piece/Roll package

Dry/Wet Inlay

● Basic parameters
Types of	High-frequency passive RFID tags
Working Frequency	13.56MHz
Protocol	IS014443A, ISO15693
● Physical parameters
size	Size flexible (customized)
Packaging Materials	PET etched aluminum antenna
Antenna	Aluminum Etching aluminum
Craft	None
● Performance Parameters
Chip	S50 / S70, Ultralight EV1 / Ultralight C, NTAG213 / 216, I CODE SLIX, FM1108
storage	Related to the chip
Operating Mode	read and write
Data Retention	> 10 years
Write Endurance	100,000 views
Reading Distance	0-5cm (read from the work environment and reader related)
● Environmental Parameters
Working Temperature	-25 ℃ ~ 55 ℃
Storage temperature	-35 ℃ ~ 70 ℃
● Typical Applications
Applications	Logistics, Asset management, Retail management, Pharmaceutical management, Supply chain management
● Packaging
Packaging Information	Pcs or roll
