17mm Size Insulated Shaft Rotary Potentiometer, WH0171-2

17mm Size Insulated Shaft Rotary Potentiometer, WH0171-2
17mm Size Insulated Shaft Rotary Potentiometer, WH0171-2
: http://gyfasteners.com/4-6-rotary-shaft.html

Part Number

WH0171-2

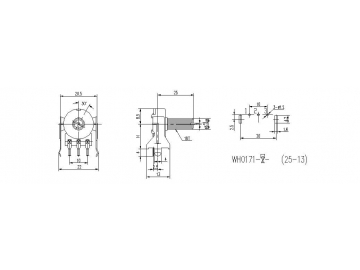

Dimensions
Parameters
Diameters 17mm
Total rotational angle 300°±10°
Rotational torque 20~200gf.cm
Stopper strength ≥4kgf
Number of resistor elements single-unit
Total resistance 500Ω-1MΩ
Resistance tolerance ±20%
Shaft Types plastic/nylon
Element carbon film
Rated power ≤0.05W
Voltage proof 500V AC for 1 minute
Operating life ≥10000cycles
Dimensions
