17mm Insulated Shaft 2 Gang Carbon Film Potentiometer, WH172 Series

17mm Insulated Shaft 2 Gang Carbon Film Potentiometer, WH172 Series
17mm Insulated Shaft 2 Gang Carbon Film Potentiometer, WH172 Series
: http://inductorcn.com/3-2-1-carbon-film-resistor.html

Part Number

WH172
Dimensions

The 17mm dual-unit type insulated shaft potentiometer features carbon film and is commonly used in consumer electronics, automotive electronics, audio equipment, household appliances, and other fields.

Parameters
Diameters 17mm
Total rotational angle 300°±10°
Rotational torque 20~200gf.cm
Stopper strength ≥4kgf
Number of resistor elements dual-unit
Total resistance 500Ω-1MΩ
Resistance tolerance ±20%
Shaft Types plastic/nylon
Element carbon film
Rated power ≤0.05W
Voltage proof 500V AC for 1 minute
Operating life ≥10000cycles

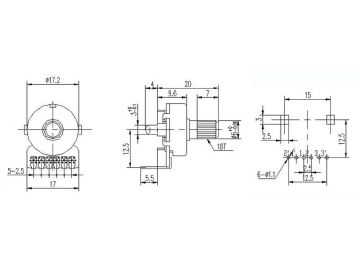

Dimensions
