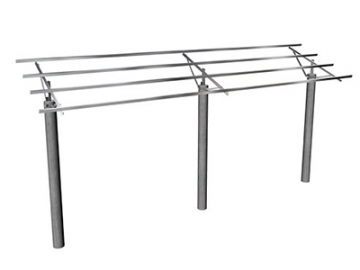

Greenhouse Solar Mounting System
Greenhouse solar mounting systems are applicable for agricultural photovoltaic power plants. The greenhouse solar mounting system uses a suitable arrangement of solar panels with different light transmittance rates to resolve lighting requirements problems between the crops and photovoltaic system, thus improving the land utilization rate. We have extensive experience in providing suitable solar racking systems for greenhouses according to properties of solar panels, light requirement of crops and size of agriculture machines.
- Ground-Mounted System
- Mounting Angle
- Ground Clearance :1800mm
- Applicable Solar Panels: framed panels & frameless panels
- Solar Panel Layout: horizontal panel installation & vertical panel installation
- Quality & Warranty
| Mount Location | Ground | Design Standard | AS/NZS 1170 , DIN 1055 ,JIS C8955 2017 , |
| Mount Base | Concrete Foundation, Ground Screw Foundation | International Building Code IBC 2009 | |
| Mount Angle | 0-30° | California Building Code CBC 2010 | |
| Wind Load | 80m/s | Rack Material | Al6005-T5 (Surface Anodic Oxidation） |
| Snow Load | 1.6KN/m2 | Fastener Material | Zn-Ni Alloy & Stainless Steel SUS304 |
| Ground Clearance | 1800mm | Mounting Accessories Material | Al6005-T5 (Surface Anodic Oxidation） |
| Applicable Solar Panels | Framed Panels & Frameless Panels | Column color | Natural Silver or According to Customer |
| Solar Panel Layout | Horizontal Panel Installation & Vertical Panel Installation | Warranty Period | 15 years |
- TUV Test
- Patent
- AS NZS 1170 Certificate
- SGS Material Analysis
- ISO 9001 Certification
- SAAEA
1.C Clamp Kit 2.End Clamp 3.U25 Mid Clamp 4.T Anchoring Base Plate 5.Conical Symmetric Rail 85 6.Splice for Conical Symmetric Rail 85
Installation StepsRelated products
