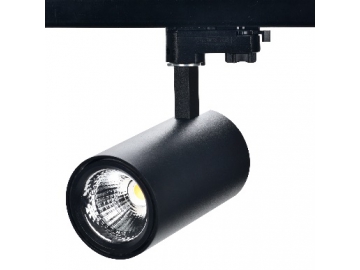

(N Series) LED Track Lighting head with Multi Installation Options
Features
- The LED driver of the track light is of high quality, high efficiency, energy saving and good power factor.
- Lenses and reflectors are available in two optical forms. They are suitable for different areas of lighting.
- A variety of installation options, such as recessed, surface mounted, and track installation.
- The track light features an energy saving ability that saves more than 80% more energy than traditional lights, and its energy consumption is 10 times less than traditional incandescent lamps.
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants
- Low light decay and 50,000 hour lifespan, which is 50 times more than a traditional tungsten lamp.
Specification
- Power 8W/12W/12W
- LED Chip CREE COB
- LED Driver Philips, OSRAM, Lifud, Eaglerise, DONE and others are available
- PF >0.9
- Voltage&Frequency AC220-240V/AC100-240V 50/60Hz
- Luminous Efficacy 90-100lm/W @CRI80 (whole lamp)

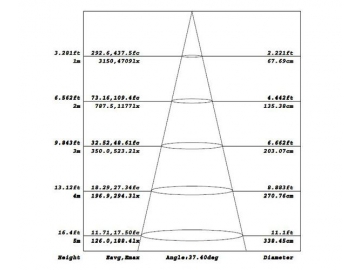

- Beam Angle 15°,24°,38°(lens), 10°,15°,24°,38°,45°(reflector)
- Body Material 6063 brushed aluminum alloy
- Adjustable 350°/ 360° rotation horizontally and 90° pivot
- Installation Track installation, surface mounted and recessed available
- Housing colorBlack, white available
- Accessory honeycomb available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years

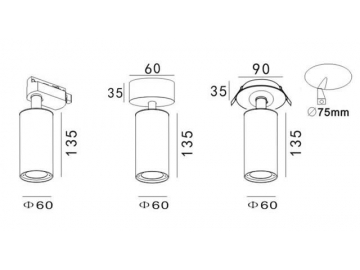

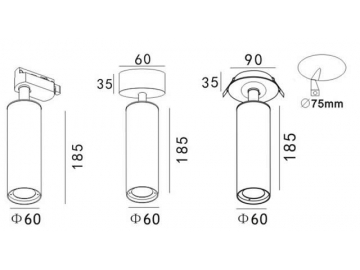

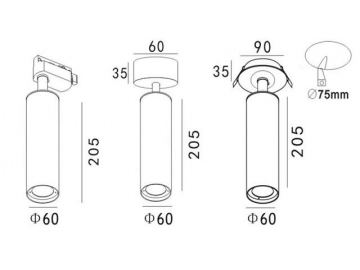

Dimensions
- 8W
- 12W
- 12W
Product Models
| Model No. | Power | Dimension | LED Chip LED | CCT | CRI | Non-dimmable/ Dimmable | |
| BH-TL-8W-N | 8W | D60*H135mm | CREE COB | 2700K 3000K 3500K 4000K 5000K | ＞80Ra | Non-dimmalbe | |
| BH-TL-12W-N | 12W | D60*H185mm | Non-dimmalbe | ||||
| BH-TL-12W-N | 12W | D60*H205mm | Triac dimmalbe |
