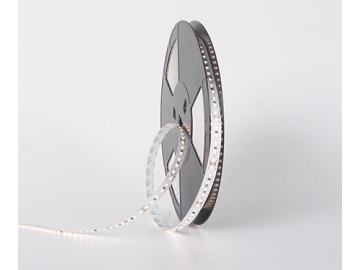

DS8120 24V 12mm Ceiling Decorative LED Strip Light
Features
- This ceiling LED strip light adopts one-end power supply, with a max. length of 20m, and the brightness is same from end to end.
- This LED strip light is of easy installation and operating and accessories saving.
- This self-encapsulated LED strip light can provide 6 optional 2300-6000K white lights.
- We can offer 1BIN/2BIN delivery with high color consistency.
- This LED strip uses high quality FPC and high thermal 3M adhesive to ensure good performance of heat dissipation.
- With high color rendering index of 80/95, this LED strip can truly represent the real color of the object.
- The life span is over 36000H.
Basic Parameters
| Size | 20000×12×1.5mm |
| Cutting unit | 6LEDs/50mm |
| Input voltage | 24VDC |
| Input current | 0.363A/1m &7.1A/20m |
| Typical power | 8.7W/m |
| Max. power | 9.6W/m |
| Bend diameter | ＞60mm |
| Ingress protection process | ET |
Photo-electric Parameters
| Color rendering index | >80 >95 |
| Correlated color temperature | 2300K/2700K/3000K/4000k/5000k/6000k 2700K/3000K/4000k/5000k |
| Lumen (m) | 851/911/960/1000/1000/960 622/683/759/759 |
| Luminous efficiency (w) | 98/105/110/115/115/110 72/78/87/87 |
| Energy efficiency class | A+ |
