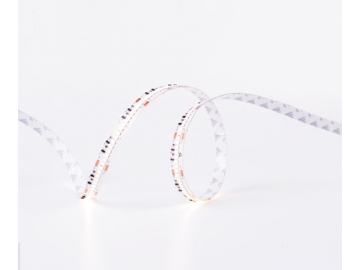

DS8256 24V 12mm LED Strip Light
Features
- High luminous flux, up to 4200LM/m or more, color rendering index >90, light efficiency 120 lumens/w;
- Constant current design, consistent brightness at the beginning and the end;
- Lifetime is greater than 36,000 hours.
Basic Parameters
| Size | 2500×12×1.6mm(8.2´×0.47〞×0.06〞) |
| Cutting unit | 8LEDs/31.25mm |
| Input voltage | 24VDC |
| Input current | 1.42A/1m&/3.4A/2.5m |
| Topical power | 34W/m(7.6W/FT) |
| Max.power | 39W/m(8.8W/FT) |
| Bend diameter | >60mm(2.36inch) |
| Copper foil | 3oz |
Photo-electric parameters
| Color rendering index | Color temperature | Lumens (m) | Lumens (w) | Energy efficiency rating |
| >90 | 3000K | 3850 | 110 | A+ |
| 4000K | 4200 | 120 | A+ | |
| 5000K | 4200 | 120 | A+ | |
| 6000K | 4200 | 120 | A+ | |
| FS | 2700K | 2800 | 86 | A |
| 3000K | 2820 | 86 | A | |
| 4000K | 2890 | 87 | A | |
| 6000K | 2860 | 86.6 | A |
Recommended Profiles
- LE5535
- LT120
