WN200TA Vacuum Compatible Motorized Positioners Manufacturer

WN200TA Vacuum Compatible Motorized Positioners

: http://optical-equipment.com/1-2-2-vacuum-compatible-motorized-positioners.html

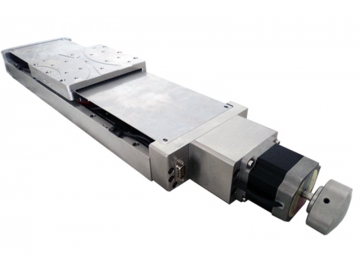

VWN220TA vacuum compatible motorized linear stage uses stainless steel as main material. Equipped with stepper motor and ball screw drive, the stage is suitable for industrial processing, laboratory working or other heavy workload.
Multiple travel ranges to choose from: 50mm~500m, the highest load capacity is 50kg.

Features

High load capacity and rigidity with imported ball screws and linear slide rail, suitable for working under high load, such as industrial processing or laboratory.
Stainless steel as main body material, making the linear stage heavier and more stable, also impervious to temperature and moisture.
Grating scale forms closed loop, which makes the linear stage more accurate. 5-phase stepper motor also increases the performance.
High precision ball screws ensures good repeatability and positional accuracy. Small axial clearance; long lifespan; also equipped with dustproof cover.

Model		WN200TA50S-G	WN200TA100S-G	WN200TA200S-G	WN200TA300S-G	WN200TA400S-G	WN200TA500S-G
Structure	Travel	50mm	100mm	200mm	300mm	400mm	500mm
	Table Size	150×150mm	150×150mm	150×150mm	150×150mm	150×150mm	150×150mm
	Screw Type	High precision ball screw (lead 5mm)
	Guide Rail	High precision linear slide rail
	Stepper Motor (0.72°)	5-phase Stepper motor
	Material	Stainless steel
	Load Capacity	50 kg
	Weight	14kg	17kg	20kg	23kg	26kg	29kg
Accuracy	Resolution	10μ(Non-MS driver) 0.5μ(20 MS driver)
	Maximum Speed	30mm/sec
	Repeatability	＜1µ
	Straightness	8µ		10µ			15µ
	Driving Parallelism	15µ		20µ		25µ
Accessories	Renishaw grating scale with the resolution of 0.1μ

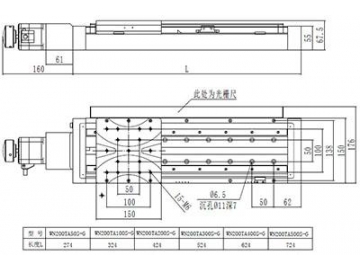

			WN200TA100S-G
