22691(W)(T) BSP 90° Elbow Female Fittings 60° Cone

22691(W)(T) BSP 90° Elbow Female Fittings 60° Cone
22691(W)(T) BSP 90° Elbow Female Fittings 60° Cone
: http://lede-fittings.com/1-9-5-grooved-90-reducing-elbow/index.html

Application: for use with hydraulic braided hoses

Materials:
  • Stainless steel BSP 90° elbow female flat seat fittings
  • Carbon steel BSP 90° elbow female flat seat fittings

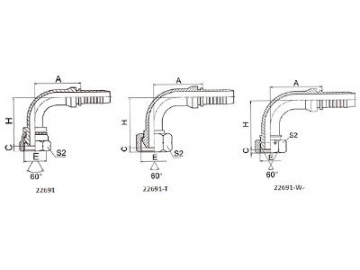

22691(W)(T) BSP 90° Elbow Female Fittings 60° Cone List

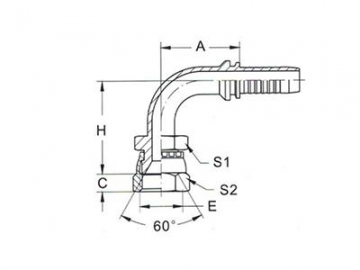

Part No. Thread Hose Bore Dimensions
E DN DASH A C H S2
22691-04-04 G1/4''×19 6 04 30 5.5 36.5 19
22691-06-05 G3/8''×19 8 05 33 6.3 40.7 22
22691-06-06 G3/8''×19 10 06 35.3 6.3 43 22
22691-08-08 G1/2''×14 12 08 41 7.5 51 27
22691-10-10 G5/8''×14 16 10 56.5 9.5 56 30
22691-12-12 G3/4''×14 20 12 65.5 10.9 66 32
22691-16-12T G1''×11 20 12 65.5 11.7 68.3 41
22691-16-16 G1''×11 25 16 76.7 11.7 73.8 41
22691-20-16T G1.1/4''×11 25 16 78 11 69.5 50
22691-20-20W G1.1/4''×11 32 20 91.5 11 84.3 50
22691-24-24W G1.1/2''×11 40 24 109.4 13 103 55
22691-32-32W G2''×11 50 32 131.8 16 123.3 70
