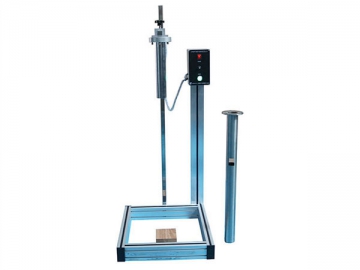

Vertical Hammer Test Apparatus SH-9
Standard
IEC 60068-2-75 Test Ehc: vertical hammer, UL498 clause SD7.2
Application
This device is designed to test the mechanical strength of various electric appliance components, as well as for testing drop impact resistance.
Test Sample
Electric appliance, plug and socket, luminaries for household and similar purposes
Feature

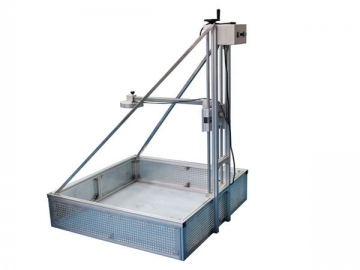

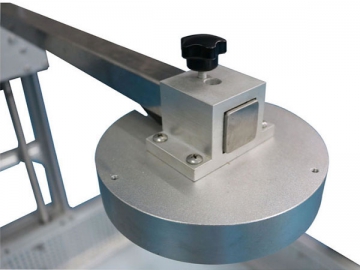

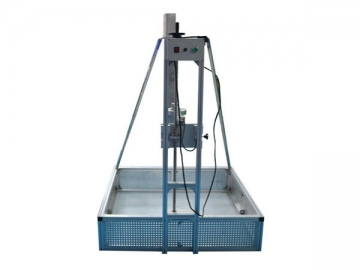

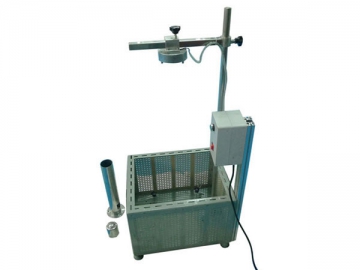

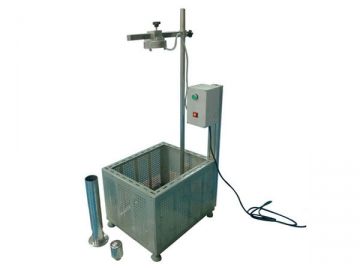

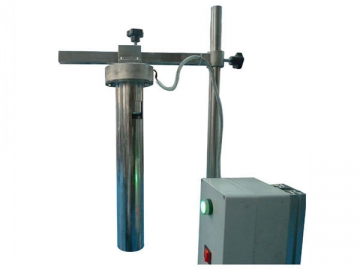

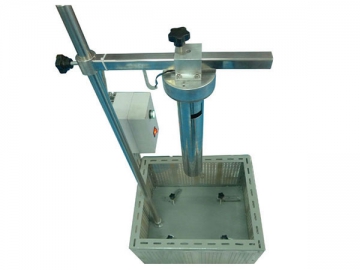

Complies with IEC60068-2-75 standards. Cantilever type rack releases the impact element by electromagnet, impact height determined by guide tube.
| Model | SH-9 | SH-9A | SH-9B |
| Release mode | Electromagnet release | Electromagnet release | Electromagnet release |

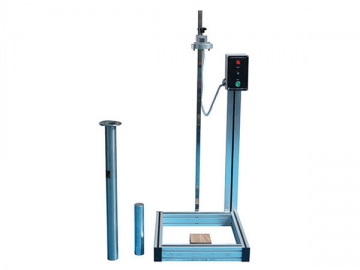

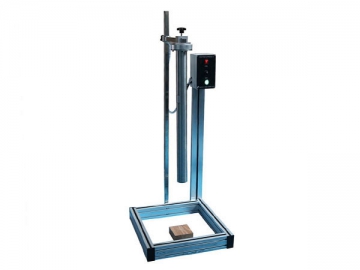

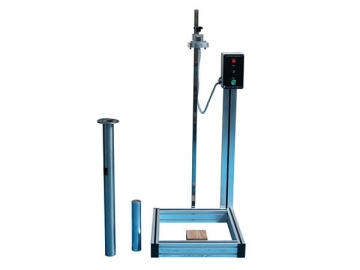

| drop floor | Nylon base 600mm*600mm; thickness 8mm; hardness HRR85-100. | Nylon base 1000mm*1000mm; thickness 8mm; hardness HRR85-100. | Hard wood board 114x114x42 mm |
| drop height | 300mm | 0-1000mm adjustable | 457 mm |
| Impact hammer | 5J | 2J, 5J, 10J, 20J, 50J | Φ50.8mm Cylinder head, weight 4.5kg |
| Standards | IEC 60075-2-75 | IEC 60075-2-75 | UL498 |
