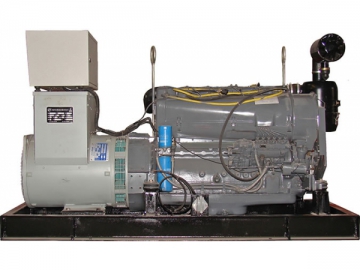

44kw DEUTZ Air-Cooled Diesel Generator Sets
General Image
Professional 44KW Genset Diesel Generator, Deutz Engine, Meccalte/Stamford.etc ALternator, Deep Sea Control Panel
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||
| Model | 40GF | Model | F4L912TD | Model | UCI224D |
| Rated prime power | 40KW | Prime power | 41KW | Rated power | 40KW |
| Standby power | 44KW | Stand power | Rated voltage | 400/230V | |
| Rated voltage | 400/230V | Rated speed | 1500rpm | Efficiency | 88.20% |
| Rated currency | 77A | No. of Cylinder | 4 | Rated current | 72A |
| Power factor | 0.8 | Bore/stroke | line | Power factor | 0.8 |
| Steady state volt deviation | ≤±5 | Cylinder arrangement | 100/120 | Frequency | 50Hz |
| Steady state frequency | ≤2.5 | Fuel consumption | 228g /KWh | Protection/ insulation | IP23/H |
| Frequency drop scope | ≤8 | Start mode | 12V electrical | Exciting way | brushless self-exciting |
| Phase | Three phase | Governor | mechanical | Weight | |
| Dimension (mm) | 1620×770×1100 | Aspiration type | Naturally aspirated | ||
| Weight | 850Kg | Cooling way | air cooled | ||
| Displacement | 3.77L | ||||
| Weight | 315kg | ||||
| Type | Generator Set 40GF |
| Place of Origin | China ( Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 50 KVA |
| Output Power | 40 kW |
| Frequency | 50Hz /60Hz |
| Cooling Type | Air Cooled |
| Alternator | Meccalte /Stamford/or customerized |
| Optional | silent type / o pen type /water-proof type |
| Certification | ISO |
