CO2 Laser Tube, M Series

: http://hmlasertube.com/1-2-75w-150w-co2-laser-tube-m-series.html

M Series Laser Tube Manual

Features

Adopting HM Laser's patented metal head, providing stable performance with lower cost;
Available power range of 75W-150W (optional);
Independently developed CO2 laser resonant cavity, beam spot size is near TEM00;
US II-VI laser mirror and German Schott glass tube (discharge tube), the best configurations of resonant cavity;
Applicable to CO2 laser engraving machine, laser cutting machine and laser marking machine;
Fast response, able to achieve smooth cutting surface, higher engraving precision and deeper marking depth;
Red dot pointer is optional, simplifying laser beam alignment;
Optional dust cover (extended tube) for output lens protection, preventing it from being dust contaminated, therefore prolonging the service life;
Long service life up to 10,000 hours;
12 months warranty;

Applications
Models
Packaging
Video

Applications

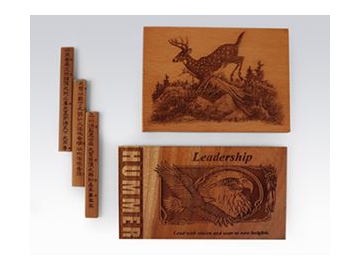

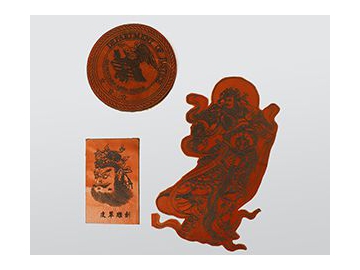

CO2 Laser Engraving

CO2 Laser Cutting

As an experienced CO2 laser tube manufacturer with an annual output capacity of 100,000 pieces, HM Laser is able to accommodate your business orders of batch production of laser tubes.

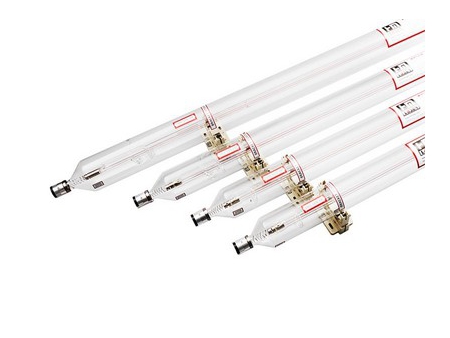

Discover Our Models of M Series CO2 Laser Tubes

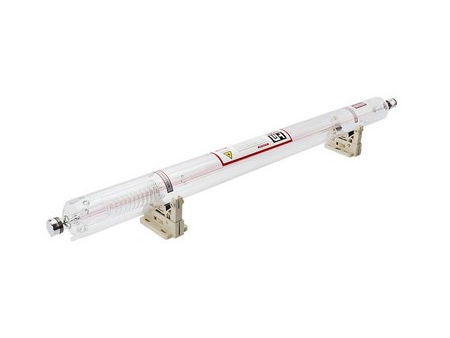

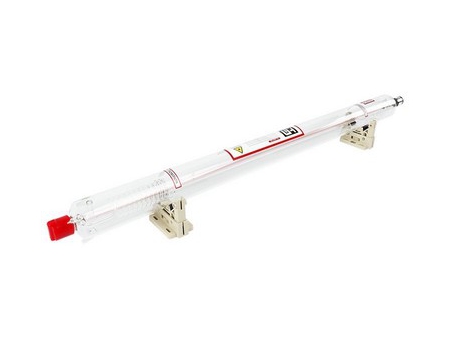

M1 75W CO2 Laser Tube, 1100mm

Length: 1100mm, ±20
Diameter: 80mm
Wavelength λ: 10.6µm
Starting current: 3-4mA
Starting voltage: 19kV
Rated operating current: 25mA
Operating voltage: 15kV
Recommended operating current: 24mA
Rated power: 75W
Spot size: 4-5mm
Divergence angle: 1.6
Certification: FDA, CE
Warranty: 12 months

M2 90W CO2 Laser Tube, 1250mm

Length: 1250mm, ±20
Diameter: 80mm
Wavelength λ: 10.6µm
Starting current: 3-4mA
Starting voltage: 19kV
Rated operating current: 28mA
Operating voltage: 17kV
Recommended operating current: 27mA
Rated power: 90W
Spot size: 5-6mm
Divergence angle: 1.6
Certification: FDA, CE
Warranty: 12 months

M4 100W CO2 Laser Tube, 1400mm

Length: 1400mm, ±20
Diameter: 80mm
Wavelength λ: 10.6µm
Starting current: 4-5mA
Starting voltage: 24kV
Rated operating current: 30mA
Operating voltage: 19kV
Recommended operating current: 28mA
Rated power: 100W
Spot size: 5-6mm
Divergence angle: 1.5
Certification: FDA, CE
Warranty: 12 months

M6 130W CO2 Laser Tube, 1650mm

Length: 1650mm, ±20
Diameter: 80mm
Wavelength λ: 10.6µm
Starting current: 4-5mA
Starting voltage: 28kV
Rated operating current: 30mA
Operating voltage: 22kV
Recommended operating current: 28mA
Rated power: 130W
Spot size: 5-6mm
Divergence angle: 1.5
Certification: FDA, CE
Warranty: 12 months

M8 150W CO2 Laser Tube, 1850mm

Length: 1850mm, ±20
Diameter: 90mm
Wavelength λ: 10.6µm
Starting current: 4-5mA
Starting voltage: 30kV
Rated operating current: 30mA
Operating voltage: 25kV
Recommended operating current: 28mA
Rated power: 150W
Spot size: 6mm
Divergence angle: 1.5
Certification: FDA, CE
Warranty: 12 months

Packaging

Packing for Air Cargo

Single package
2pcs/4pcs/6pcs in one big carton
2pcs-12pcs in one wooden case

Packing for Sea Shipment

Single Package
2pcs/4pcs/6pcs in one big carton
2pcs-12pcs in one wooden case

Packing for Courier

Video

Laser Tube Installation

Package Testing

Why Choose Us

Nearly 30 years in the laser market since 1994
Professional R&D team of experts who have worked in the field of laser cutting machine and laser tube for 17 years
HM Laser's high-efficiency production and strict quality control processes that ensure our annual manufacturing output exceed 100,000 pieces
Advanced Glass-to-Metal Hard Seal technology, the premium quality metal head for sealed CO2 laser tube
Reflective mirror (US II-VI) discharge tube (German Schott) catalyst coating (HM Laser), the best configurations of resonant cavity
Self-developed high-precision machining center ensures the high precision of optical components
Ultra-clean workshop, constant temperature and humidity are maintained to guarantee consistent quality of laser tubes all year round
