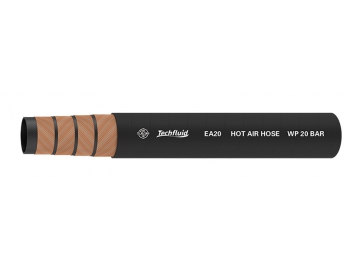

Hose for Automotive Type EA10/EA16/EA20/EA25
This hose for automotive application is designed for transporting high temperature compressed air, inert gases, and non-corrosive fluids for heat sinks and other engine components.
Advantages:
Application: Widely used for heat sinks of vehicles.
Working Temperature: -20℃~+120℃.
Construction:
- Tube: Black EPDM rubber, thermal resistant, anti-aging, and excellent air impermeability;
- Reinforcement: Multiple plies of polyester tire cord or woven fiber;
- Cover: Cloth textured EPDM rubber, anti-aging, thermal resistant and applicable for long-term outdoor use.
Technical Parameters:
| Code No. | Size (inch) | I.D. (mm) | O.D. (mm) | W.P. | B.P. | Safety factor | MBR (mm) | Weight (Kg/m) | LengthMax (m) | ||
| (bar) | (psi) | (bar) | (psi) | ||||||||
| EA20-19 | 3/4〞 | 19 | 28 | 20 | 300 | 60 | 900 | 3 | 120 | 0.53 | 100 |
| EA20-25 | 1〞 | 25 | 34 | 20 | 300 | 60 | 900 | 3 | 150 | 0.66 | 100 |
| EA20-32 | 1-1/4〞 | 32 | 42 | 20 | 300 | 60 | 900 | 3 | 200 | 0.92 | 100 |
| EA20-38 | 1-1/2〞 | 38 | 48 | 20 | 300 | 60 | 900 | 3 | 250 | 1.06 | 100 |
| EA20-51 | 2〞 | 51 | 63 | 20 | 300 | 60 | 900 | 3 | 350 | 1.58 | 100 |
| EA20-64 | 2-1/2〞 | 64 | 77 | 20 | 300 | 60 | 900 | 3 | 450 | 1.86 | 100 |
| EA20-76 | 3〞 | 76 | 89 | 20 | 300 | 60 | 900 | 3 | 500 | 2.3 | 100 |
| EA20-89 | 3-1/2〞 | 89 | 103 | 20 | 300 | 60 | 900 | 3 | 600 | 2.9 | 100 |
| EA20-102 | 4〞 | 102 | 120 | 20 | 300 | 60 | 900 | 3 | 650 | 4.2 | 100 |
| EA20-127 | 5〞 | 127 | 146 | 20 | 300 | 60 | 900 | 3 | 800 | 5.2 | 100 |
| EA20-152 | 6〞 | 152 | 171 | 20 | 300 | 60 | 900 | 3 | 960 | 6.1 | 100 |
