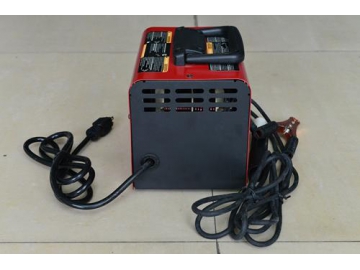

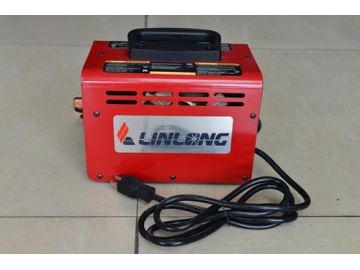

Manual Arc Welding Machine
Our 70AC series manual arc welding machine with ACR inverter is designed to be operated with a power frequency AC power supply. The arc welding machine can be applied in hardware field, for decoration and equipment maintenance or by home DIYers. It is suitable for welding carbon steel, regular low carbon steel and stainless steel.
- Equipped with an electrode holder and earth clamp, the ARC inverter MMA welding machine features easy and safe operation.
- The overheat protection feature further improves the operational safety.
- Output current can be continuously adjusted with ease.
| Model | ARC70AC |
| Electrode Diameter | 1.6-2.0mm |
| Rated Input Voltage | 1P 115V |
| Frequency | 50/60Hz |
| Rated Input Power | 2.7KW |
| Rated Input Current | 24.8A |
| Duty Cycle (40°C 10min) | 10%70A, 20%50A |
| Open Circuit Voltage | 42V |
| Rated Output Current Range | 50-70A |
| Efficiency (Min) | 80% |
| Power Factor | 0.73 |
| Protection Class | Ip23 |
| Insulation Class | H |
| Cooling System | NO FAN |
| N.W | 9.7KG |
| G.W. | 11.2KG |
| Packing Dimension | 390×195×255mm |
Customization
The appearance, welding current, product manuals and package of our MMA welding machine can be customized according to customer requirements.
- Mask
- Hammer Brush
