13mm Travel Precision Translation Stages

: http://optical-equipment.com/1-3-1-1-precision-crossed-roller-steel-bearing-stages.html

Our 25mm travel stainless steel precision translation linear stages have 6 models, WN101TM~ WN106TM to choose from. WN105TM, WN106TM are designed with side lock to enhance the stability of the table. The stage is suitable to provide manual linear displacement in the fields of scientific research, automatic measurement and testing.
The linear motion is driven by the micrometer head. Adopting crossed roller bearing, higher center load capacity as well as more stable motion is allowed. The high precision small resolution micrometer head ensures the displacement adjusted at the nanometer level

Features of precision motorized linear stage

Precision machined with stainless steel, the manual stage has high stiffness and load capacity.
Adopting high precision cross roller guide, the stainless steel linear stage has high precision and is durable.
With high precision base and table, the linear stage has a high accuracy of straightness, yawing, pitching and parallelism.
Use spring reset device to eliminate axial clearance.
Linear scale can be added to display micro incremental movement.
The mounting holes are distributed on the base and table with standard hole spacing, which makes the linear stage convenient to do installation and combination.
The linear stage can be combined with other series of stages to form multi-axis positioning stage.

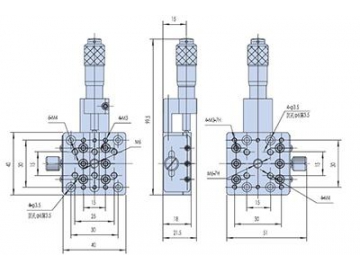

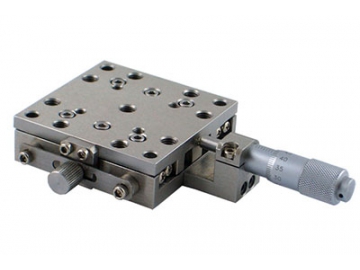

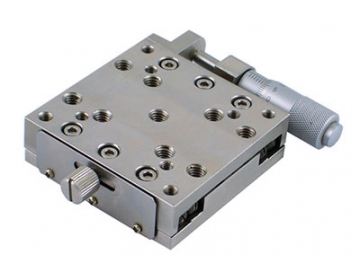

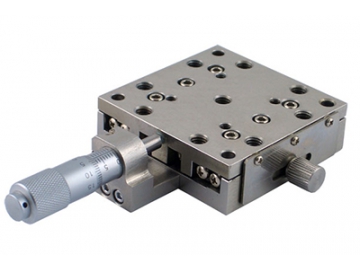

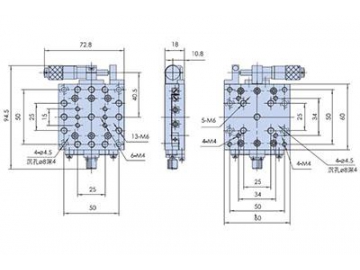

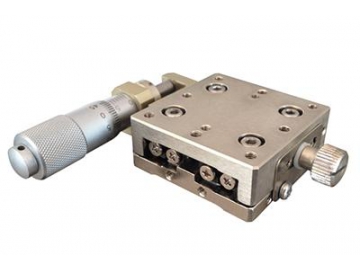

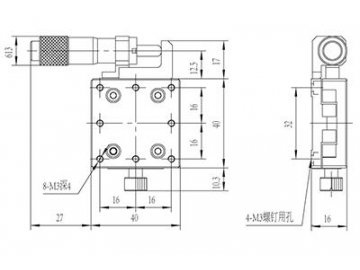

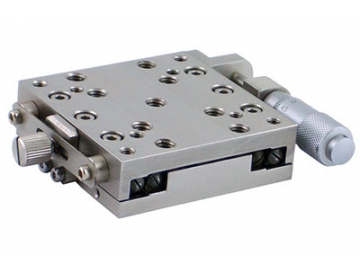

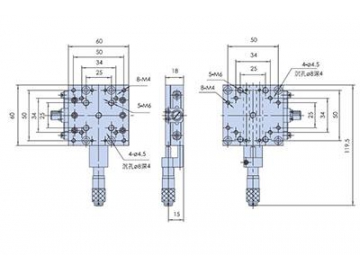

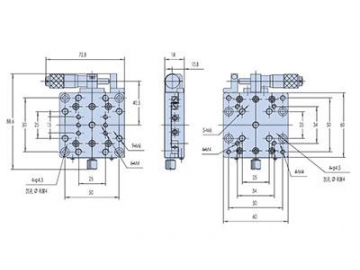

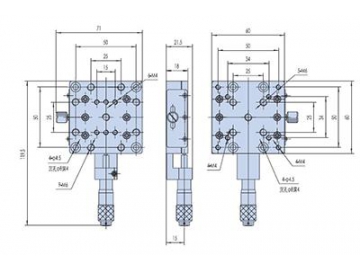

WN101TM13H

WN102TM13H

WN103TM13H

WN104TM13H

WN105TM13H

WN106TM13H

Model	WN101TM13H	WN102TM13H	WN103TM13H	WN104TM13H	WN105TM13H	WN106TM13H
Table size	40mm×40mm	40mm×40mm	60mm×60mm	60mm×60mm	60mm×60mm	60mm×60mm
Drive	Micrometer head	Micrometer head	Micrometer head	Micrometer head	Micrometer head	Micrometer head
Drive position	Central drive	Lateral drive	Central drive	Lateral drive	Central drive	Lateral drive
Travel	13mm	13mm	13mm	13mm	13mm	13mm
Smallest graduation	10μ/0.5μ	10μ/0.5μ	10μ/0.5μ	10μ/0.5μ	10μ/0.5μ	10μ/0.5μ
Precision	3μ/1.5μ	3μ/1.5μ	3μ/1.5μ	3μ/1.5μ	3μ/1.5μ	3μ/1.5μ
Minimal adjustment	2μ/0.1μ	2μ/0.1μ	2μ/0.1μ	2μ/0.1μ	2μ/0.1μ	2μ/0.1μ
Guide type	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide
Load capacity	8kg	8kg	10kg	10kg	10kg	10kg
Straightness	2μ	2μ	2μ	2μ	2μ	2μ
Yawing	25″	25″	25″	25″	25″	25″
Pitching	15″	15″	15″	15″	15″	15″
Table parallelism	15μ	15μ	15μ	15μ	15μ	15μ
Running parallelism	8μ	7μ	7μ	7μ	7μ	7μ
Weight	0.24kg	0.24kg	0.4kg	0.4kg	0.4 kg	0.4kg
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Surface	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation
