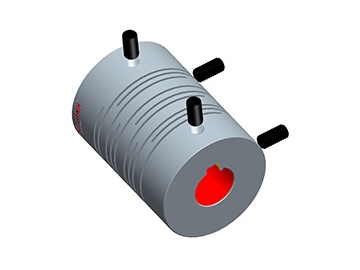

LK2-4 Single-beam Coupling - Beam Type - Clamp Type - Spiral

LK2-4 Single-beam Coupling - Beam Type - Clamp Type - Spiral
LK2-4 Single-beam Coupling - Beam Type - Clamp Type - Spiral
LK2-4 Single-beam Coupling - Beam Type - Clamp Type - Spiral
Request a Quote
Dimensions
Note: the model with S is the stainless steel type, and the model without S is aluminium alloy type
please let us know the model and the φd1φd2 of product you need.
Model φd1φd2
Max. Bore Diameter
φD L L1 M Wrench Torque
( N.M )
LK2-C075-M
SLK2-C075-M
6.35 19.1 22.9 3.10 M2.5 0.8
LK2-C100-M
SLK2-C100-M
10 25.4 31.8 4.15 M3 1.2
LK2-C112-M
SLK2-C112-M
12.7 28.6 38.1 5.00 M4 2.5
LK2-C150-M
SLK2-C150-M
15 38.1 41.3 5.90 M5 5
LK2-C200-M
SLK2-C200-M
19 50.8 51.0 6.70 M6 8
Specifications
Model Rated Torque
( N.m )
Max.Torque
( N.m )
Max.Rotational Frequency
( rpm )
Moment of Inertia
( Kg.m2 )
Static Torsional Stiffness
( N.m / rad )
Errors of Eccentricity
( mm )
Max. Angular
( °)
Max. Axial Misalignment
( mm )
Mass ( g )
LK2-C075-M 0.5 1.0 8000 9.0×10-7 110 0.1 2.0 ±0.15 13
LK2-C100-M 1.4 2.8 6000 2.6×10-6 170 0.1 2.0 ±0.15 32
LK2-C112-M 1.6 3.2 5000 8.9×10-6 260 0.1 2.0 ±0.15 47
LK2-C150-M 4.2 8.4 4500 3.2×10-5 330 0.1 2.0 ±0.15 94
LK2-C200-M 9.0 18.0 4500 9.8×10-5 560 0.1 2.0 ±0.15 233
SLK2-C075-M 1.0 2.0 8000 2.4×10-6 230 0.1 2.0 ±0.15 40
SLK2-C100-M 2.2 4.4 6000 7.3×10-6 320 0.1 2.0 ±0.15 96
SLK2-C112-M 3.1 6.2 5000 2.6×10-5 790 0.1 2.0 ±0.15 134
SLK2-C150-M 7.5 15.0 4500 8.6×10-5 980 0.1 2.0 ±0.15 268
SLK2-C200-M 14.0 28.0 4500 3.0×10-4 1450 0.1 2.0 ±0.15 392
