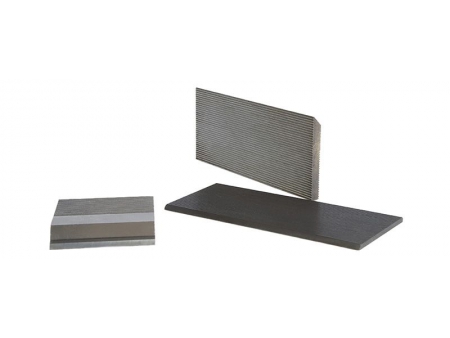

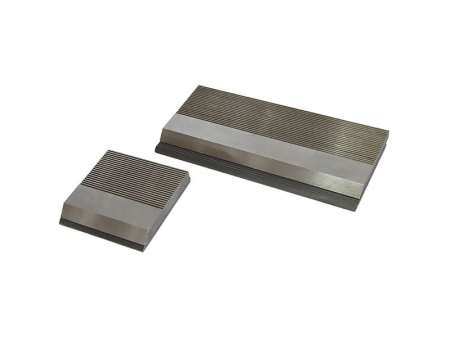

Bak-Pak Carbide Knives

: http://machinetoolblades.com/1-3-bak-pak-carbide-knives.html

Hi-Tech offers various types of Bak-Pak carbide knives applicable to different countries. Bak-Pak in American style features full corrugations in its TCT part. Bak-Pak in European style features partial corrugations in its TCT part. Other specifications can be produced following customer demands.

Bak-Pak carbide knives feature a two-piece matching system that incorporates the TCT part and a matching steel corrugated backing plate. The total thickness of the American style and European style products is 10mm (3/8"). Bak-Pak carbide knife is usually installed in a serrated cutterhead for pattern cutting. Width options include 38mm, 50mm, 60mm and 70mm for selections.

Type

Bak-Pak in American style, Bak-Pak in European style, Eco-Pak

Specifications

Size
Length	Width	Thickness
mm	mm	mm	inch
60	38/50/60/70	10	3/8
70	38/50/60/70	10	3/8
80	38/50/60/70	10	3/8
90	38/50/60/70	10	3/8
100	38/50/60/70	10	3/8
120	38/50/60/70	10	3/8
150	38/50/60/70	10	3/8
200	38/50/60/70	10	3/8
