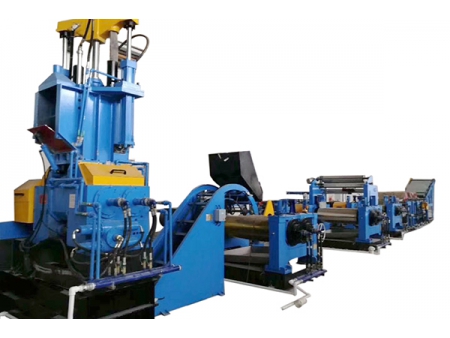

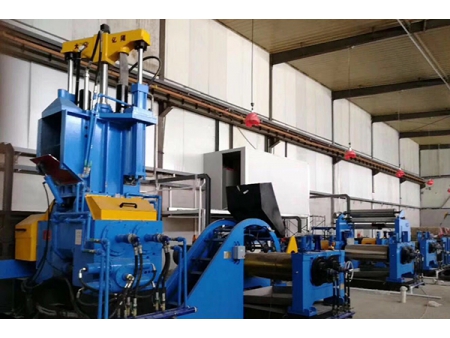

Banbury Rubber Mixer
Applications
The Banbury rubber mixer is designed and produced for industrial rubber and rubber product operations. Tires, cables, rubber hoses, belts, and many other rubber products are produced thanks to high efficiency Banbury rubber mixers like the ones produced by Shun Cheong. The mixers are also suitable for mixing oil paints, dyes, ceramics, medicines, and other similar products with outstanding end results.
| Model | X(S)M-1.5 | |
| Total volume (L) | 1.5 | |
| Filling factor | 0.6-0.8 | |
| Rotor speed (r/min) | 0-80 | |
| Max ram pressure (MPa) | Max 0.3 | |
| Main motor power (Kw) | 37AC | |
Dimension (mm) | Length | 2,700 |
| Width | 1,200 | |
| Height | 2,040 | |
| Total weight (kg) | 2,000 | |
| Model | X(S)M-50 | |
| Total volume (L) | 50 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 4-40 (40) | |
| Max ram pressure(MPa) | 0.27 | |
| Main motor power (KW) | 90DC（95AC） | |
Dimensions | L | 5,560 |
| W | 2,700 | |
| H | 3,250 | |
| Total weight (kg) | 16,000 | |
| Model | X(S)M-80 | |
| Total volume (L) | 80 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 4-40 (40) | |
| Max ram pressure(MPa) | 0.37 | |
| Main motor power (KW) | 200DC（210AC） | |
Dimensions | L | 5,800 |
| W | 2,500 | |
| H | 4,155 | |
| Total weight (kg) | 22,000 | |
| Model | X(S)M-110 | |
| Total volume (L) | 110 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 4-40 (40) | |
| Max ram pressure(MPa) | 0.58 | |
| Main motor power (KW) | 250DC（240AC） | |
Dimensions | L | 6,000 |
| W | 2,850 | |
| H | 4,450 | |
| Total weight (kg) | 29,000 | |
| Model | X(S)M-160 | |
| Total volume (L) | 160 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 4-40 (30) | |
| Max ram pressure(MPa) | 0.5 | |
| Main motor power (KW) | 355DC（355AC） | |
Dimensions | L | 8,900 |
| W | 3,330 | |
| H | 6,050 | |
| Total weight (kg) | 36,000 | |
| Model | X(S)M-250/20 | |
| Total volume (L) | 250 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 20 | |
| Max ram pressure(MPa) | 0.24 | |
| Main motor power (KW) | 240AC | |
Dimensions | L | 7,500 |
| W | 3,900 | |
| H | 4,730 | |
| Total weight (kg) | 33,500 | |
| Model | X(S)M-270 | |
| Total volume (L) | 250 | |
Filling factor | 0.6-0.8 | |
| Rotor speed(r/min) | 4-40 | |
| Max ram pressure(MPa) | 0.52 0.6(Hydraulic) | |
| Main motor power (KW) | 1250DC（1250/1500AC） | |
Dimensions | L | 7,450 |
| W | 4,140 | |
| H | 6,270 | |
| Total weight (kg) | 50,000 | |
| Model | X(S)M-370 | |
| Total volume (L) | 395 | |
Filling factor | 0.6-0.8 | |
| Rotor speed（r/min） | 6-60 | |
| Max ram pressure(MPa) | 0.54 0.6（Hydraulic） | |
| Main motor power (KW) | 2x1250DC | |
Dimensions | L | 11,150 |
| W | 4,960 | |
| H | 7,040 | |
| Total weight (kg) | 78,000 | |
Description of Banbury Rubber Mixer
1. The roller is the main component of the internal mixer. Center section is made of fine cast steel with microelement ingredients like manganese. Each end is made from #45 round steel.
2. Mixing chamber features a modular structure, which is convenient to disassemble and assemble for easy installation and maintenance.
3. Discharging door is constructed from forged steel treated with a surface hardening process, making it tough and wear-resistant. Cooling medium flows mono-directionally. Heat exchange efficiency is high and the cooling process is fast. The base of the discharging door is made of cast steel. High stiffness and small deformation provide excellent sealing effects to the internal mixer when mixing.
4. Reduction gears processed by a carburizing quenching treatment and the gear surfaces are grinded to achieve high processing accuracy, wear-resistance and low noise. Due to the configuration of double tooth couplings and double circle tangential keys, the banbury rubber mixer is more competitive thanks to its stable transmission, high efficiency, excellent bearing capacity and overload capacity.
5. Steel plate base is processed to be thicker, which provides higher bearing capacity.
6. Electric control system features a PLC system which has the advantage of good compatibility and anti-interference capability.
7. Operation box next to the equipment adopts pressurized dust control technology to guarantee dust free environment and longer service life of electronic components in harsh working environments.
