QG-PCB30 Precision Cutter, Automatic & Manual
Metallographic Precision Cutting Machine
- Cut-off wheel:Φ180×1×Φ22mm
- Max. cutting capacity:Φ 30mm
- Motor: DC brushless, 1.2 kW
- Cutting method: Automatic/Manual, Spindle feeding or table feeding
Request a quote
Features
- QG-PCB30 precision cutter adopts a speed adjustable motor to drive the cut-off wheel for cutting and it allows for manual and automatic operation. Based on the sample material and personal habits, the cutting can be controlled by hand-operated wheel or by cutting table propulsion. Automatic cutting mode is also available based on set parameters.

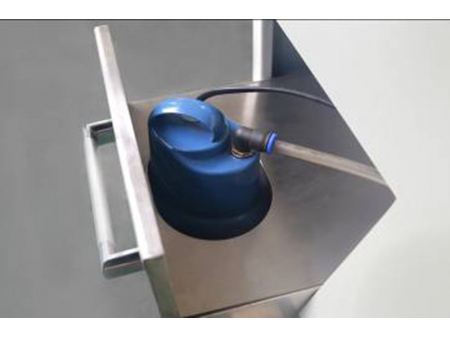

- Exquisite overall design: built-in stainless stell circulating filter cooling water tank adopts 80% water and 20% cutting fluid for lubricating the cutting blade and sample. This effectively prevents the sample surface from heat burn, and protects the rail and ball screw form rusting.
- The machine automatically stops when opening the cover. This safty protection enables the working area being enclosed. The transparent cover is for observation.

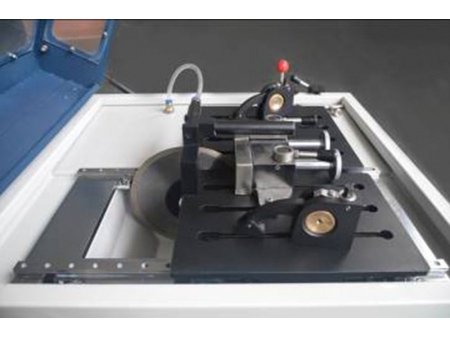

- The cutting table is available for different clamp tools and the clamp device can be disassembled for cleaning, improving the machine practicality.
Cutting samples

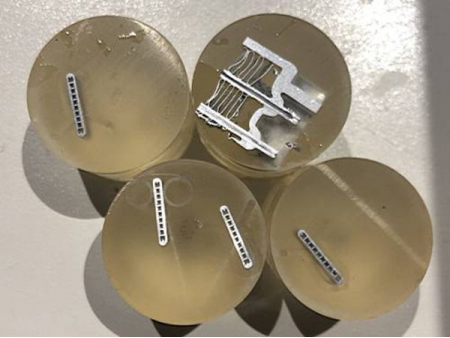

- Automotive air filting aluminum alloy parts

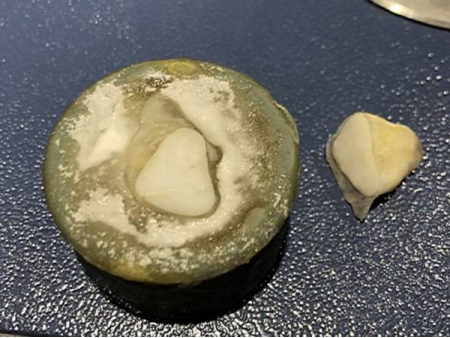

- Petrographic sample

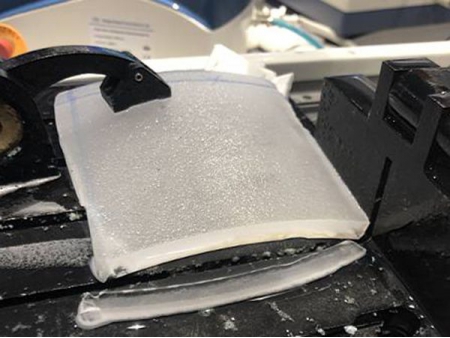

- Cutting thick samples of curved silicon glass
- Cutting thick samples of curved silicon glass
Technical Data
- Feeding speed: manual/automatic, 1-36mm/min (adjusted in steps of 0.1mm/min, max. speed is at zero load)
- Max. travel: spindle travel: 140mm, table travel: 230mm
- Spindle speed: 500-3000r/min
- Cutting table: 245×415mm with 8mm T slot

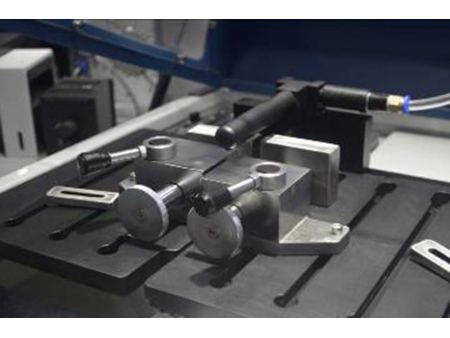

- Clamping tool: quich clamp with 45mm jaw height; vertical clamp with 27mm opening
- Display and control: 5.7 inch touch screen
- Pump flow: 16L/min
- Dimensions: 620×740×380mm
- Net weight: 80kg
