Linear EVA Injection Moulding Machine, ZF206E/ZH208E Manufacturer

Linear EVA Injection Moulding Machine, ZF206E/ZH208E

: http://shoe-makingmachines.com/1-4-1-linear-eva-injection-moulding-machine.html

Single colour injection moulding machine for making EVA/FRB rain boots, midsoles, sandals and seat cushions

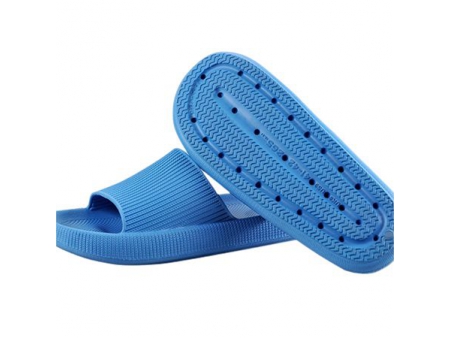

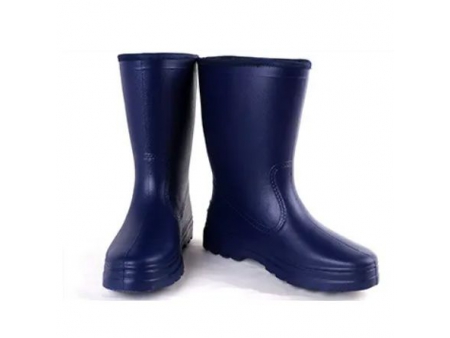

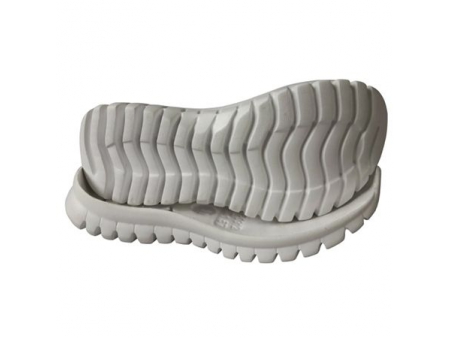

This EVA injection moulding machine is suitable for the production of single-colour foam products like rain boots, midsoles, slippers, sandals, yoga sticks and cushions. It can handle raw materials of EVA and rubber particles.

Specifications

Item	Unit	ZF206E	ZH208E
Raw materials		EVA, Rubber
Stations		6	8
Screw diameter	mm	60/65*2
Maximum injection volume	CC	980/1150*2
Injection pressure	MPa	120
Clamping force	Tons	220
Yield	Pairs/hour	180-250	200-300
Mould space	mm	2905502set
Mould opening stroke	mm	350
Mould thickness	mm	100-330
Injection cylinder diameter/stroke	mm	∅250*350
Screw power	kW	14
Template heating power	kW	12*6	12*8
Servo motor power	kW	52
Total power	kW	138	162
Dimensions	cm	790×470×300	970×470×300
Machine weight	Tons	25.6	32.7
Oil consumption	L	1200

Optional

Energy-saving hydraulic servo control system

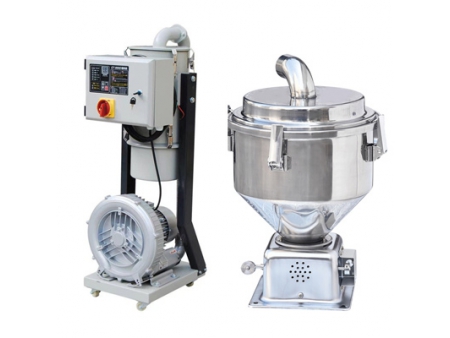

Suction machine

System flow chart

Features

Large template design and superior clamping force;
Shuttle table allows for smooth station switching;
This linear EVA injection moulding machine has a constant temperature system and a powerful vacuum system;
Screw rod is made through special techniques that ensure durable and effective performance;
Safety measures involving different machine parts have been taken;
Efficient feeding system is configured to save a lot of time;
Standard industrial human-machine interface (HMI) and PLC control system are installed;
- PLC control system
- PLC
- HMI interface

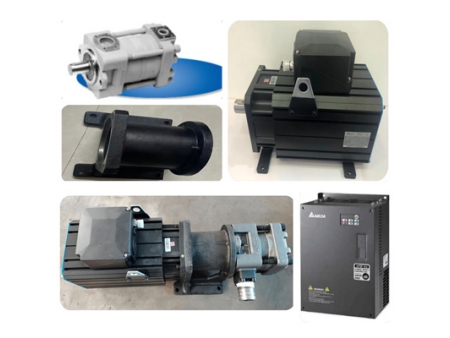

Servo system is installed to save energy and reduce costs;
- Servo system

Auxiliary Equipment

Cooling tower cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;

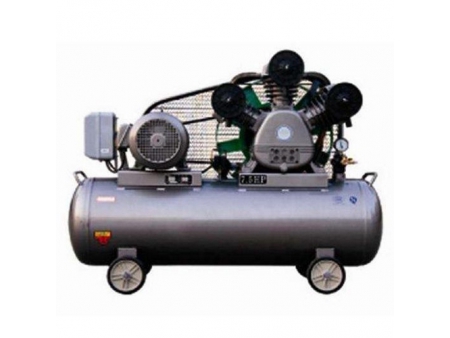

Air compressor is connected to the shoe injection moulding machine to ensure enough air supply;

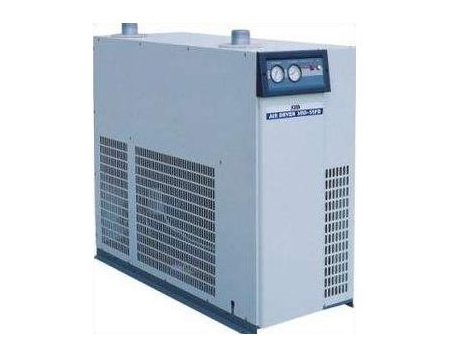

Drying system is used to avoid bubbles in finished products and make better foam soles;

Accessories and Components

Parts list
Toolbox	/	1pc
Allen key	1.5-10	9 sets
Allen key	12	1pc
Allen key	14	1pc
Allen key	17	1pc
Open-end wrench	8-32	6 sets
Open-end wrench	41-46	1pc
Slotted Screwdriver	6#	1pc
Phillips screwdriver	6#	1pc
Adjustable wrench	375-46 mm	1pc
Vacuum pump oil	/	1 liter
O-ring	60*3.1	2pcs
O-ring	95*3.1	1pc
O-ring	120*3.53	1pc
O-ring	140*3.1	1pc
O-ring	200*5.7	1pc
O-ring	195*3.1	4pcs
O-ring	160(inner)*3.1	2pcs
O-ring	40*2.65	2pcs
O-ring	20*3.1	1pc
Pressure gauge	400KG	1pc
Vertical pressure gauge	400KG	1pc
Heating rod	Φ16*500	4pcs
Solid state relay	/	5pcs
Proximity switch	Q18-05NK	5pcs
Heating ring	φ118*50	1pc
Heating plate	250*65	1pc
Thermal resistance	/	5pcs
User manual	/	1
Ground anchor plate	CB001	40pcs
Pneumatic spray gun	/	4pcs
Upper mould locking bolt	CB002	30pcs
Mould locking bolt gasket	CB003	30pcs
Lower mould locking bolt	M12X65	48pcs
Spray gun	/	4pcs
Mould coupling	CB004	16pcs
Thermocouple	/	4pcs
Gas pipe	φ8	30meters
Gas pipe fittings	φ8 Tee	10pcs
Gas pipe fittings	φ8 Coupling	10pcs
Gas pipe fittings	Z1/4-8 Coupling	10pcs
Gas pipe fittings	Z1/4 Quick connect coupler	10pcs
Wire rope	/	8meters
Rope tensioner	/	4pcs
Wire buckle	/	4pcs
Pulley	/	4pcs
Cable tie	10*500	1pack
Cable tie	5*250	1pack
Nut	M27	36pcs
Magnetic switch		3pcs
Temperature controller	H-D48	3pcs
Current meter	85L17-300/5	1pc
Current meter	85L17-1A	1pc
Blower	120*120-220V	1pc
Double proportional valve amplifier board	/	1pc
Drive board	127	2pcs
Alarm lamp	24V yellow	1pc
Warning buzzer	/	1pc
5-way 2-position pneumatic valve	24V	2pcs
High temperature valve	24V-3/8	2pcs
Sliding block	35	1pc
Non-return valve	55	1pc
Bushing	φ45*φ55	5pcs
Torpedo nozzle	/	1pc
Check ring	/	1pc
Transition ring	/	1pc
Pneumatic combination unit	/	1pc
Vacuum gauge	/	2pcs
