Rubber Tyre Injection Moulding Machine, ZH108R

: http://shoe-makingmachines.com/2-1-rubber-tyre-injection-moulding-machine.html

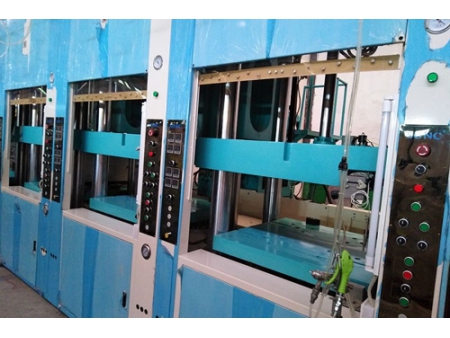

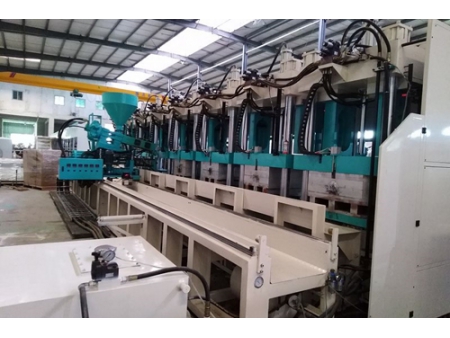

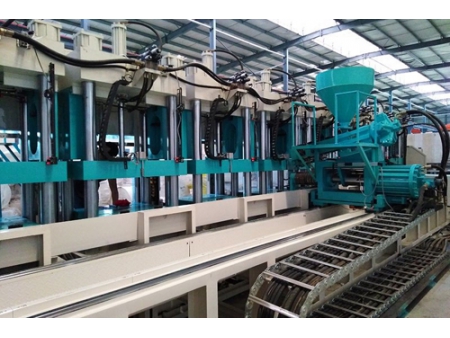

Multi-station injection moulding machine for producing rubber tyres and rubber handrails

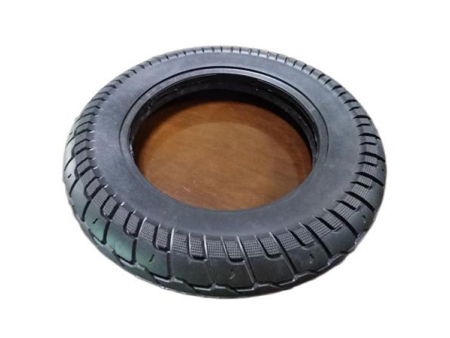

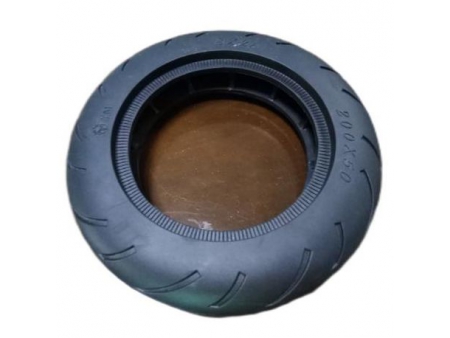

This injection moulding machine is suitable for processing rubber particles and then produce rubber products like low-speed tyres and rubber handrails.

Specifications

Stations		8
Maximum injection volume	g	3500
Screw diameter	mm	80
Injection pressure	MPa	100
Clamping force	Ton	500
Mould space	mm	850850300
Die opening stroke	mm	600
Dimensions	mm	13000*6000
Heating power	kW	30
Total power	kW	75
Total weight	Ton	100

Optional

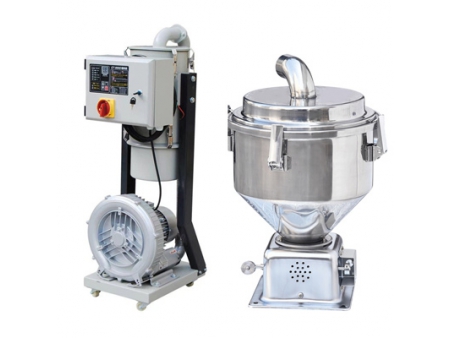

Suction machine

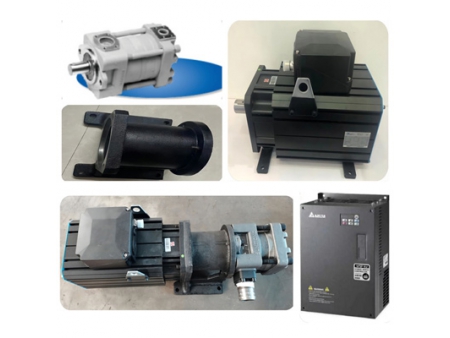

Energy-saving hydraulic servo control system

System flow chart

Features

No need for rubber mixing, direct injection molding of rubber particles;
Rubber particles do not age for up to 6 months, and the products made of the rubber particles are wear-resistant and high-elastic;
This injection moulding machine features large injection pressure and clamping force, which ensure the product is smooth and free of burrs;
Standard industrial human-machine interface (HMI) and PLC control system are installed;
This tyre injection moulding machine has a powerful vacuum system to remove the air in the mould cavity;
Constant mold temperature control system is configured to ensure precise control of vulcanization speed;
This rubber tyre injection moulding machine has a precise displacement control system to improve the working efficiency of the injector;
Fully meet the demands of the vulcanization production of rubbers;

Auxiliary Equipment

Cooling tower cools down hydraulic oil and raw materials before they are fed into the injection moulding machine;
Air compressor can be connected to the injection moulding machine to ensure enough air supply;
Drying system helps avoid bubbles in finished rubber products;
