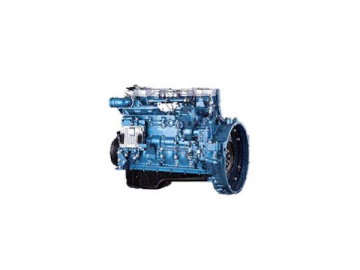

    Technical Specification of SC7H Model Truck Diesel Engine
    Model Unit EURO III, Euro III/Euro IV/Euro V
    SC7H200 SC7H220 SC7H240 SC7H260
    Type 　 In-line, electronically controlled common rail, four valves, TCI, water cooling, rear gear housing
    Bore ×Stroke mm 105×124
    Total displacement L 6.5
    Rated power/rated speed kw/r/min 147/2300 162/2500 177/2500 192/2300
    Maximum torque/speed N.m/r/min 750/1200~1800 800/1200~1800 920/1200~1800 1000/1200~1800
    Min. fuel consumption g/kw.h ≤190
    Noise dB(A) ≤95
    Overall dimension mm Length: 1059
    Width: 7725 Height: 960
    Net weight kg 480
    Power range ps 180~260
