(B Series) LED Cylinder Track Kit with Extra Power Box
Features
- External power design offers better heat dispersion.
- The color render index (CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects.
- B series LED track lights have different dimming options, such as DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee.
- We provide two kinds of track adaptor, one is PowerGear,the other is GLOBAL, for you to choose from.
- Four kinds of reflector beam angle: 15°, 24°, 38°and 60°are available.
- Four kinds of power: 25W, 30W, 35W and 40W are available.
Specification
- Power 25W/30W/35W/40W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming option Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Reflector Beam Angle 15° 24° 38° 60°
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Dimensions
25W/30W/35W/40WProduct Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | |
| BH-TL-25W-B | 25W | Φ90*L150mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 90-100 lm/W @CRI80 (whole lamp) | |
| BH-TL-30W-B | 30W | ||||||
| BH-TL-35W-B | 35W | ||||||
| BH-TL-40W-B | 40W |
Photometric

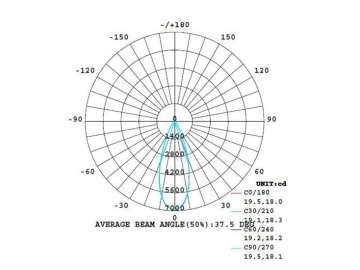

- Luminous Intensity Distribution Diagram 35W 4000K Beam Angle 38°

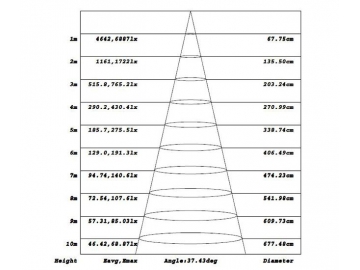

- The Average Illuminance Effective Figure 35W 4000K Beam Angle 38°
