B2 Series LED Cylinder Track Lighting Head with Extra Power Box
Application

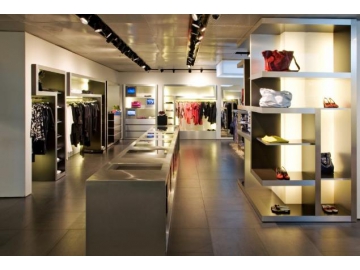

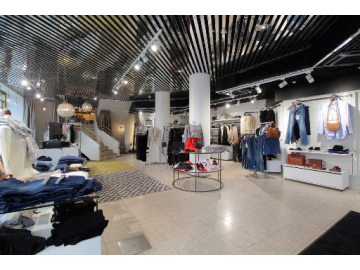

Ideal for gallery, museum, retail store, shopping mall, exhibition hall and other commercial or private applications.
Specification
- Power20W/30W/35W/40W/50W
- LED ChipCitizen/CREE COB
- LED DriverTridonic, Philips, OSRAM, Lifud, BOKE and others are available
- Dimming optionsNon-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF>0.9
- Body Material6063 brushed aluminum alloy
- Adjustable350° rotation horizontally and 90° pivot
- Housing colorBlack/white
- Track adapterGlobal, PowerGear and other brands are available
- Phase1 /2 /3 phase
- Lifespan50000 hours
- Warranty3-5 Years

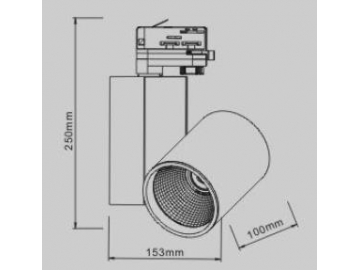

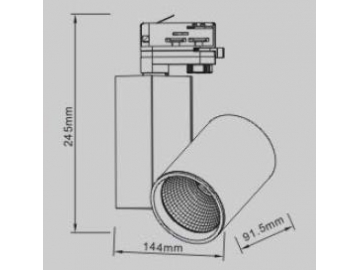

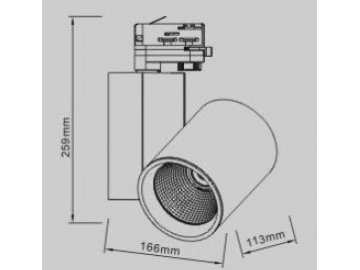

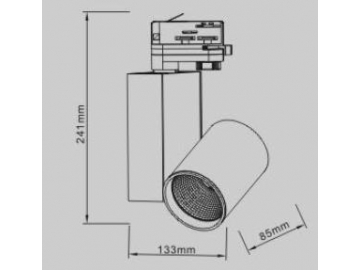

Dimension
- 20W
- 30W
- 35W/40W
- 50W
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | Beam Angle | Input Voltage | Track adapter | |
| BH-TL-20W-B2 | 20W | Φ85*L112mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 90-100 lm/W @CRI80 (whole lamp) | 15° 24° 38° 45° 60° | AC220-240V/ AC100-240V 50/60Hz | 1 phase 2 phase 3 phase | |
| BH-TL-30W-B2 | 30W | Φ91.5*L125mm | ||||||||
| BH-TL-35W-B2 | 35W | Φ100*L138mm | ||||||||
| BH-TL-40W-B2 | 40W | Φ100*L138mm | ||||||||
| BH-TL-50W-B2 | 50W | Φ113*L148mm |
