QNB460B 600B Laminating Machine

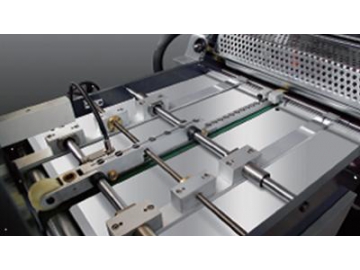

The QNB-460/600 automatic book cover making and lining machine uses automatic paper feeder, which adopts push back paper feeding structure and is servo and pneumatically controlled. Cardboard positioning machine with automatic error correction function is utilized. Equipped with auto gluing machine and folding machine, the equipment can provide high quality products with high efficiency. Moreover, the Omron PLC intelligent control system ensures automatic fault detection and facilitates debugging, which lowers the waste of raw material.
QNB laminating machine is added with an automatic position correcting set to improve positioning accuracy of cardboard. This device is designed to satisfy the requirements for the processing accuracy of products produced by automatic cover making and lining machine, especially those color printed packaging boxes and covers that have higher demands for parallel degree of the combined top sheet and cardboard as well as high coincidence degree of the printed lines, which is even required to be less than 0.3 mm, but can also be satisfied by this device.
This machine is also equipped with an optical fiber precision detection device that can enhance the delivery accuracy of cardboard, which can solve large cardboard deformation and ensure accurate delivery of thin cardboard and nonstandard board, thus increasing product qualification rate.
- The book cover case making and lining machine offers a high level of automation, which helps reduce labor intensity.
- Air suction device can avoid air bubbles and paper is protected from bending with automatic leveling device.
- The automatic lifting platform helps to get ordered products.
- The intelligent touch screen greatly facilitates the operation.
| Model | QNB-460 | QNB-600 |
| Length of paper | 230-830 mm | 230-1030 mm |
| Width of paper | 140-480 mm | 160-600 mm |
| Thickness of paper | 80-200 g | 80-200 g |
| Thickness of cardboard | 1-3 mm | 1-3 mm |
| Speed | 0~30 pcs/min. | 0~25 pcs/min. |
| Power | 16 kW | 17 kW |
| Weight | 2000 kg | 2200 kg |
| Dimension | L4900XW2150XH1500 mm | L6800XW2600XH1500 mm |
As an experienced automatic book cover making and lining machine manufacturer in China, XINWEI MACHINERY provides a wide range of products that includes hardcover pressing machine, square book back making machine, rigid box forming machine and more.
