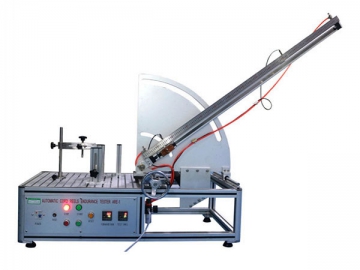

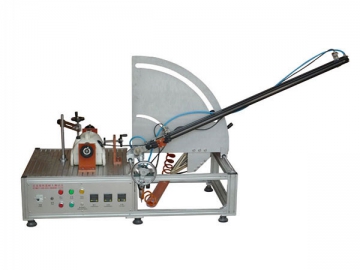

Automatic Cord Reels Endurance Testing Equipment HJ0605
Standard
Clause 22.16 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.
Application
It is used to inspect automatic cord reels and make sure that they are free from
– Undue abrasion or damage to the sheath of the flexible cord
– Breakage of conductor strands
– Undue wear of contacts
Test Sample
Automatic cord reels of household appliances and similar electrical appliances.
Feature
The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most electrical products.
| Input Power | 220V/50HZ |

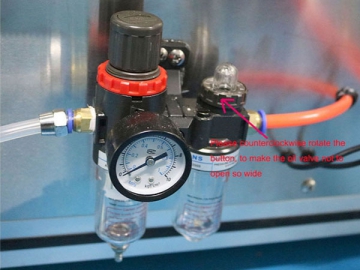

| Gas Source | Compressed air 5 ~ 7kg / cm2 |
| Test Speed | 30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less) |

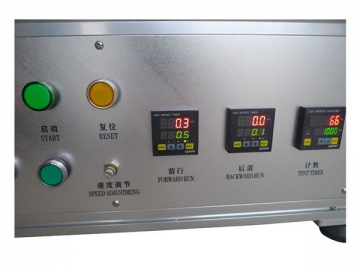

| Test Cycles | 0~9999 times, the test device will stop working automatically when the preset test cycles are finished |
| Drive Mode | Pneumatic |
| Withdrawable Angle | 30~70°, can be preset |
| Fixture | Quick clamping fixtures, easy for clamping the test sample |
| Withdrawable Stroke | Maximum 1000mm, can be adjusted |
