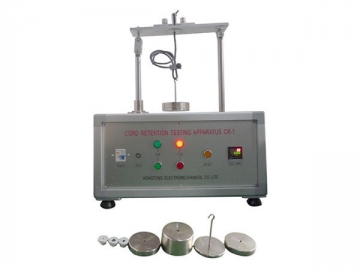

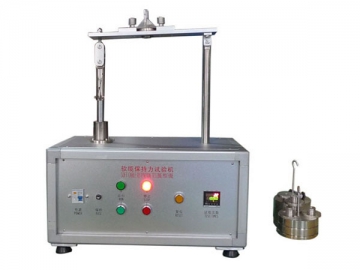

Apparatus for Testing Cord Retention HC9917
Standard
IEC 60884-1 2013 clause 23.2, VDE 0620
Application
This device is used to test the firmness of the plug and cable of electrical appliances.
Test Sample
Non-rewirable plug and socket-outlet, rewirable plug and socket-outlet
Feature
In accordance with standard requirements.
Parameters
1. Power supply: AC 220V 50Hz

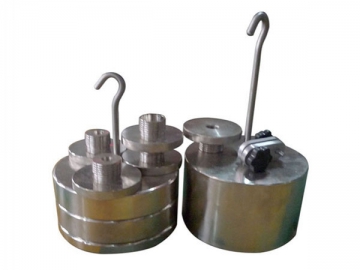

2. Weights: 10N*1, 60N*1, 20N*2
3. Rate of testing: 60 times / min
4. Test times: 0-9999, preset. Default 100 times

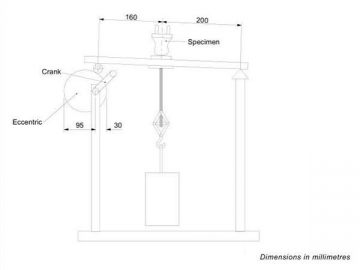

5. The pull force to the flexible cable
| The rated current of the flexible cable(A) | The rated voltage of the flexible cable(V) | The tensile force |
| 2.5 | - | 50 |
| 2.5~16 | < 250 | 60 |
| 2.5~16 | >250 | 80 |
| >16 | - | 100 |
