JRX2 Series AC Contactor
- Voltage: 220V/380V
- Current: 09A/50HZ
- Installation level: Level 3
- Pollution level: Level 3
- Guarantee: 1 year warranty
- Color: black

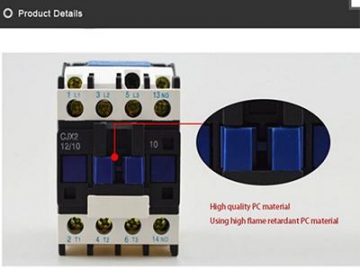

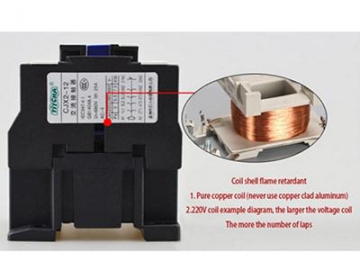

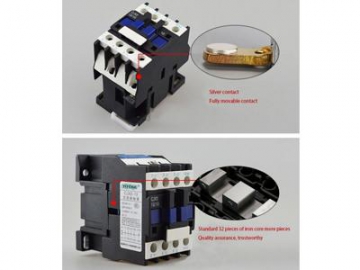

Details
Specifications
| Model | Agreed edge voltage | Conventional heating current | Rated operating current | Control the empty rate | Number of contacts | Remarks | ||||
| 230V | 400V | 415V | 400V | 690V | ||||||
| CJX2-0910 CJX2-0901 | 690 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC | Installation: 1. two screw installed; 2. 35mm rail mounted |
| CJX2-1210 CJX2-1201 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC | ||
| CJX2-1810 CJX2-1801 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC | ||
| CJX2-2510 CJX2-2501 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC | ||
| CJX2-3210 CJX2-3201 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC | ||
| CJX2-4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | ||
| CJX2-5011 | 80 | 50 | 15 | 22 | 25 | 25 | 33 | |||
| CJX2-6511 | 80 | 65 | 18.5 | 25 | 37 | 37 | 37 | |||
| CJX2-8011 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
| CJX2-9511 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | |||
Dimensions
