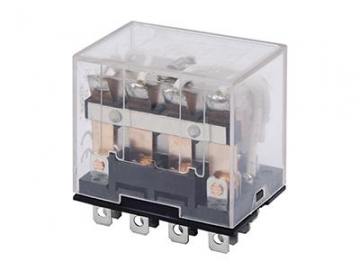

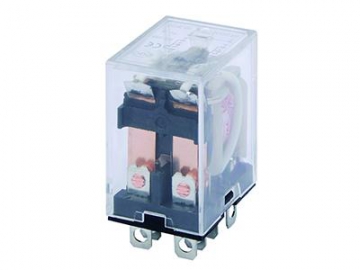

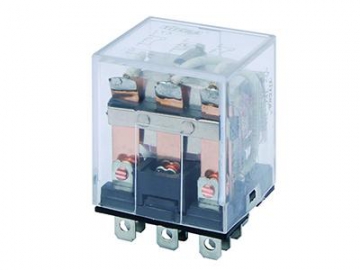

LY Series General Purpose Relay
Features
- Switching current of contact is up to 10A
- With LED indicator
- Multiple terminals
- Transparent dust cover
- Various installation methods
- Optional sockets
Contact parameters
| Contact ratings | 1Z, 2Z, 3Z, 4Z |
| Contact resistance | 100mΩ (1A 6VDC) |
| Contact capacity | 10A/250VAC 30VDC |
Parameters
| Insulation resistance | 500MΩ (500VDC) |
| Dielectric strength | BCC≥1500VAC 1min |
| BOC≥1000VAC 1min | |
| coc≥1500VAC 1min | |
| Operating time | 25ms/15ms |
Specifications
| Model | Coil | Electrical life | Mechanical life | Operating temperature | Weight | Mounting methods | |
| Rated voltage | Rated power | ||||||
| JQX-13F- 1Z (LY1) | DC 6 to 220V AC 6 to 380V | DC≤0.9W AC≤1.2VA | 105 OPS | 107 OPS | -25℃~55℃ | ≤34g | printed-circuit board, flange, outlet |
| JQX-13F- 22 (LY2) | DC 6 to 220V AC 6 to 380V | DC≤0.9W AC≤1.2VA | 105 OPS | 107 OPS | -25℃~55℃ | ≤34g | |
| HH63P (LY3) | DC 6 to 220V AC 6 to 380V | DC≤1.4W AC≤2.0VA | 105 OPS | 107 OPS | 25℃~55℃ | ≤49g | |
| HH64P (LY4) | DC 6 to 220V AC 6 to 380V | DC≤1.5W AC≤2.5VA | 105 OPS | 107 OPS | 25℃~55℃ | ≤69g | |

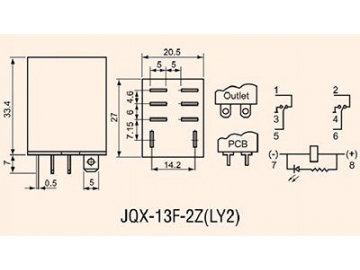

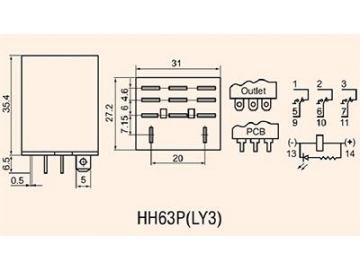

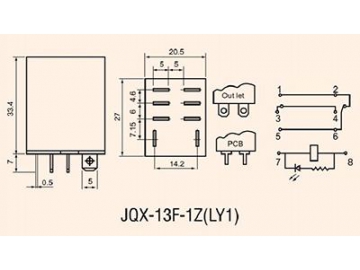

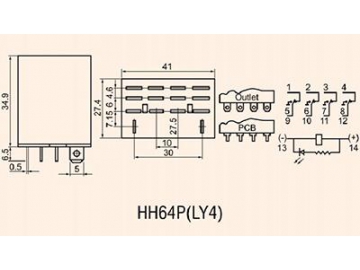

Outline dimension, bottom View
