GPL-Y Series Automatic Insulating Glass Production Line

: http://footwear-machine.com/4-11-automatic-footwear-production-line.html

The glass conveying speed of this GPL-Y series automatic insulating glass production line can be precisely controlled by operators. The glass washing speed can reach up to 10-12m/min with 6 high-temperature fur brushes of 180mm in diameter. Its glass pressing machine can expand to 60cm, so it is convenient to maintain.

Parameter

Model	GPL-XY2500Y	GPL-XY2000Y
Input Voltage	380V 50Hz	380V 50Hz
Total Power	30KW	23KW
Cutting Glass Size	2500×3000mm	2000×2500mm
Min Glass Size	300×450mm	300×450mm
Glass Thickness	4~18mm	4~18mm
Working Speed	8~48m/min	8~48m/min
Total Weight	6500kg	6000kg
Size of Line	17000×2600×3530mm	15500×2600×3030mm

Show details:

1.Pressing part:

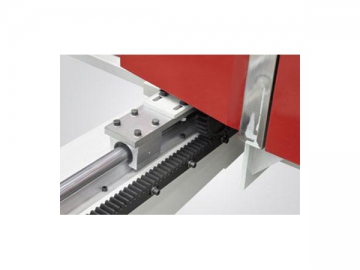

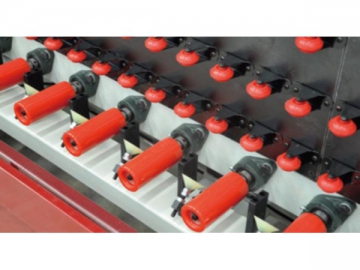

2. Trajectory and gear are used for glass fastening, which is very stable and reliable.
2. The pressing unit is welded by 2.75mm rectangular tube.
2. Manipulators are used for glass uploading, which makes sure that glass pieces are not dislocated or broken.

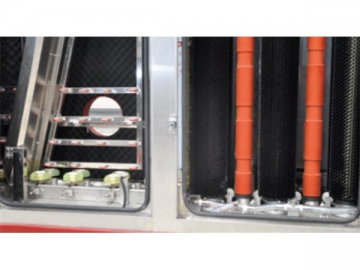

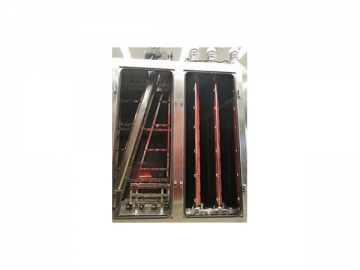

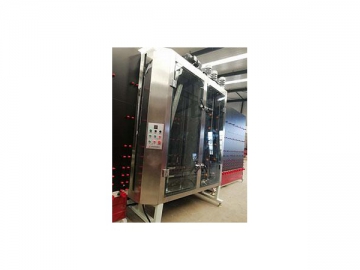

2.Washing part:

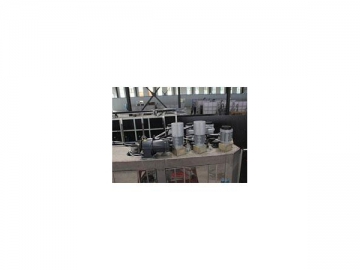

6 fur brushes are equipped with 6 motors for precise control
The speed of washing machine can be adjusted.
There are two layers at the bottom of cleaning part, which effectively prevent water leaking.

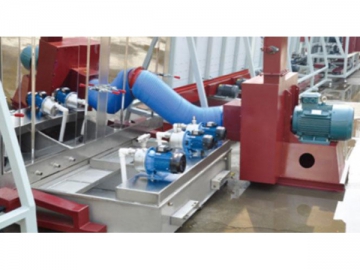

The spray direction of spray system can be adjusted and washing machine water cabinet is equipped with heating system.

Features:

The activated plate of pressing machine can automatically expand and is easy to maintain.
The glass washing machine is equipped with 3 pairs of fur brushes which are specialized for Low emissivity glass and will not damage the film layer of glass during cleaning process.
It is applicable for manufacturing two-layer insulating glass, three-layer insulating glass, curtain wall insulating glass and special insulating glass.

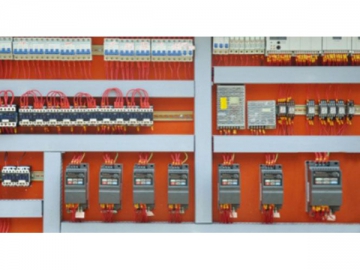

The whole equipment adopts PLC control system, it adopts touch screen as display screen, which can display the temperature and speed of water, production output and so on. And there will be prompt message on the display when equipment errors happen.
Operators can control the glass transport speed, and this production line is equipped with buffer storage area which can minimize the waiting time of operators and increase the production efficiency.

Maintenance

Clean the equipment every day, and sweep the surrounding environment of equipment.
Apply lubricating oil to transmission parts.
Check the electric wire joint of the equipment weekly, identify the points with potential errors.
Check the screw of transmission part joint monthly and fasten any loose screws.
Change the lubricating oil for reducer every six months.
Change the hydraulic fluid for hydraulic pressure system every year.
Sweep the dust for electronic control system and check the completeness.
