C1 Series LED Cylinder Track Lighting Head, 130-135LM/W
Features
- The color render index (CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects
- The LED driver of the track light is of high quality, high efficiency and energy saving.
- Segment reflector is selected, high reflection aluminum sheet efficiency is up to 97%.
- We provide two kinds of track adaptor, one is PowerGear,the other is GLOBAL, for you to choose from.
- C1 series LED track lights have different dimming options, such as DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee.
- Three kinds of power: 30W, 35W and 40W are available.
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | |
| BH-TL-30W-C1 | 30W | Φ90*L200mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 130-135LM/W @CRI80 (whole lamp) | |
| BH-TL-35W-C1 | 35W | ||||||
| BH-TL-40W-C1 | 40W |
Dimensions
30W/35W/40WSpecification
- Power 30W/35W/40W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
- Dimming optionNon-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Reflector Beam Angle 20/°30°/ 60°
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black / white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Photometric

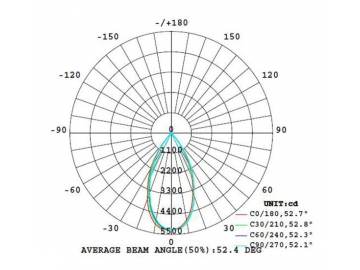

- Luminous Intensity Distribution Diagram 30W 4000K Beam Angle 60°

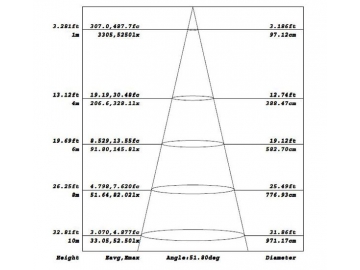

- The Average Illuminance Effective Figure 30W 4000K Beam Angle 60°
Application

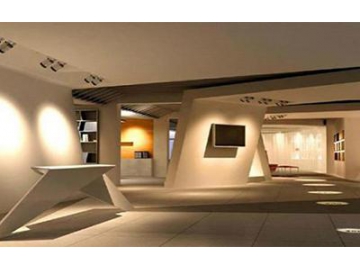

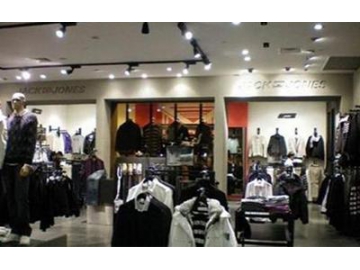

C1 series LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
