C1 Series LED Cylinder Track Lighting Head with Built-in Driver

C1 Series LED Cylinder Track Lighting Head with Built-in Driver
C1 Series LED Cylinder Track Lighting Head with Built-in Driver
C1 Series LED Cylinder Track Lighting Head with Built-in Driver
C1 Series LED Cylinder Track Lighting Head with Built-in Driver
: http://mf-ledlights.com/2-2-1-led-cylinder-wall-mount-lighting.html
Application

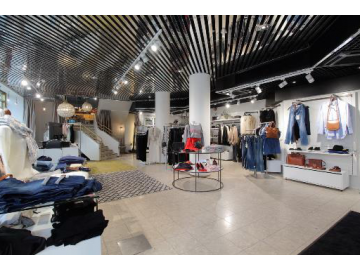

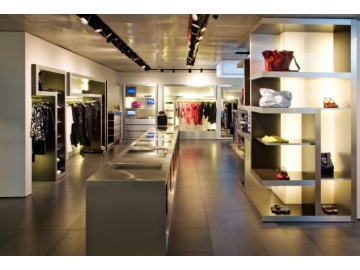

Ideal for gallery, museum, retail store, shopping mall, exhibition hall and other commercial or private applications.

Specification
  • Power10W
  • LED ChipCitizen/CREE COB
  • LED DriverTridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
  • Dimming options Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
  • PF>0.9
  • Body MaterialADC12 die-casting aluminum alloy
  • Adjustable350° rotation horizontally and 90° pivot
  • Housing colorBlack / white
  • Track adapterGlobal, PowerGear and other brands are available
  • Phase1 /2 /3 phase
  • Lifespan50000 hours
  • Warranty3-5 Years
Dimension
Product Models
Model No. Power Dimension LED Chip CCT CRI Luminous Efficacy Beam
Angle 		Input Voltage Track
adapter
BH-TL-10W-C2 10W Φ56*L135mm Citizen/
CREE COB 		2700K
3000K
3500K
4000K
5000K 		80
90
97 		80-100LM/W @CRI80 15°/24°/38°/60° AC220-240V/AC100-240V 50/60Hz 1 phase
2 phase
3 phase
Related products
H Series LED Cylinder Track Lighting Head with Built-in Driver, 90-100lm/W
H Series LED Cylinder Track Lighting Head with Built-in Driver, 90-100lm/W

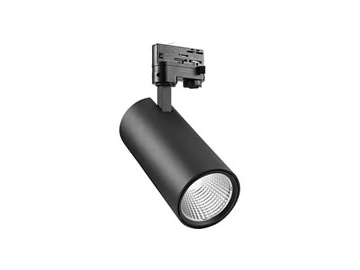

H2 Series LED Track Lighting Head with Straight Tube and Built-in Driver
