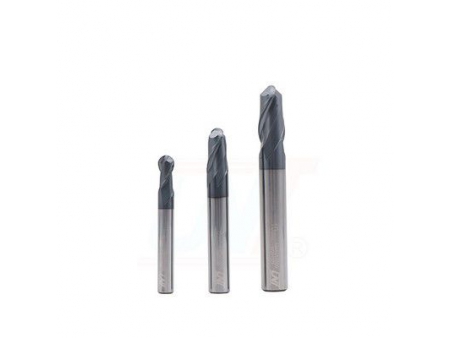

EMA06 2 Flute Ball Nose End Mill, 37°Helix, Long Length
- 4D flute, variable helix design (Approx. 37°) for improved slotting and roughing
- Oerlikon Balzers coating offers superior hardness and high performance
- Cutter Dia. down to 0.01mm
- Used for profile milling and slotting
- Chamfer design for easy installation

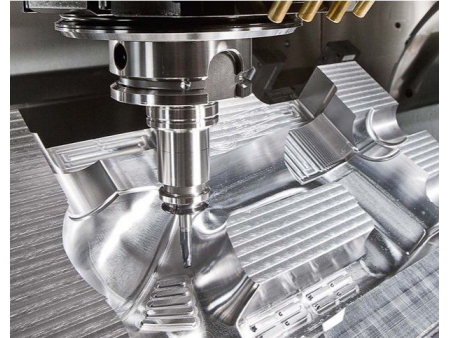

Application
Product Specifications
Coating | AITiN /TiALN /TiAISiN AITiSiN | HRC | HRC46/56 |
Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
Material | IMC™ UMG Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide, 2 Flute Ball Nose End Mill - Long Length, for Copy Milling (UNT-EMA06)
UNT EDP # Click to Order | Radius R | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
EMA06010075 | R0.5 | 1.0 | 4 | 2 | 75 | 2 |
EMA06015075 | R0.75 | 1.5 | 4 | 3 | 75 | 2 |
EMA06020075 | R1.0 | 2.0 | 4 | 4 | 75 | 2 |
EMA06025075 | R1.25 | 2.5 | 4 | 5 | 75 | 2 |
EMA06033075 | R1.5 | 3.0 | 3 | 6 | 75 | 2 |
EMA06030075 | R1.5 | 3.0 | 4 | 6 | 75 | 2 |
EMA06040075 | R2.0 | 4.0 | 4 | 8 | 100 | 2 |
EMA06040100 | R2.0 | 4.0 | 4 | 8 | 75 | 2 |
EMA060100756 | R0.5 | 1.0 | 6 | 2 | 75 | 2 |
EMA060150756 | R0.75 | 1.5 | 6 | 3 | 75 | 2 |
EMA060200756 | R1.0 | 2.0 | 6 | 4 | 75 | 2 |
EMA060300756 | R1.25 | 3.0 | 6 | 6 | 75 | 2 |
EMA060400756 | R1.5 | 4.0 | 6 | 8 | 75 | 2 |
EMA060401006 | R2.0 | 4.0 | 6 | 8 | 100 | 2 |
EMA06050100 | R2.0 | 5.0 | 6 | 10 | 100 | 2 |
EMA06060075 | R2.5 | 6.0 | 6 | 12 | 75 | 2 |
EMA06060100 | R3.0 | 6.0 | 6 | 12 | 100 | 2 |
EMA06080075 | R3.0 | 8.0 | 8 | 16 | 75 | 2 |
EMA06080100 | R4.0 | 8.0 | 8 | 16 | 100 | 2 |
EMA06100100 | R4.0 | 10.0 | 10 | 20 | 100 | 2 |
EMA06120100 | R5.0 | 12.0 | 12 | 24 | 100 | 2 |
EMA06060150 | R6.0 | 6.0 | 6 | 12 | 150 | 2 |
EMA06080150 | R3.0 | 8.0 | 8 | 16 | 150 | 2 |
EMA06100150 | R4.0 | 10.0 | 10 | 20 | 150 | 2 |
EMA06120150 | R5.0 | 12.0 | 12 | 24 | 150 | 2 |
EMA06160150 | R6.0 | 16.0 | 16 | 32 | 150 | 2 |
EMA06200150 | R8.0 | 20.0 | 20 | 40 | 150 | 2 |
• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
