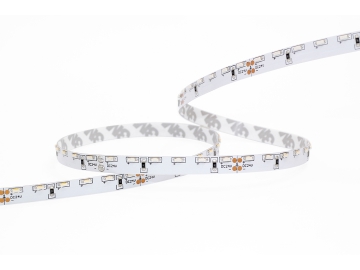

Indoor Sideview Warm White LED Strip, SMD 315 LED Manufacturer

Indoor Sideview Warm White LED Strip, SMD 315 LED

: http://ledstripsolution.us/1-6-indoor-sideview-warm-white-led-strip.html

Key Features

Ambient Temperature:-20℃ to 45℃
Voltage: DC24V
LED pitch--0.41inch/0.66inch, field cuttable: every 2.46inch/3.94inch
Length/Reel(M/ft):5m/16.4ft
CRI 90 , allowing objects to reflect and display colors similarly to natural light
Superior 315 SMD chips

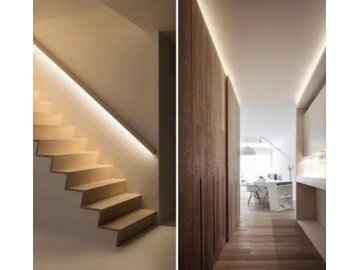

Installation width of the strip light is only 4mm, great for the special lighting projects in narrow space, such as cove lighting and cabinet lighting.
2400-3000K warm white light
CRI 90 , allowing for revealing colors of illuminated objects almost true-to-nature

*Please contact our sales for the latest details and certifications

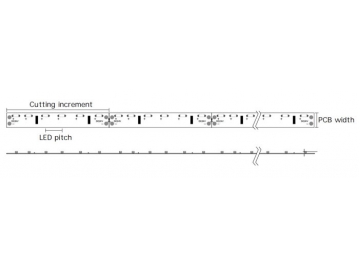

Specification

Model	Led Qty	Power	Lumens per feet	Cutting increment	LED pitch	PCB width
FE05WS-P0-G1 31X9x 24V60S W08L05	60LEDs/M	4.8W/M 1.46W/ft	400-430lm/M 122-131lm/ft	100mm 3.94inch	16.7mm 0.66inch	8mm 0.31inch
FE07WS-P0-G1 31X9x 24V96S W08L05	96LEDs/M	7.6W/M 2.32W/ft	620-680lm/M 189-207lm/ft	62.5mm 2.46inch	10.4mm 0.41inch	10mm 0.39˝

Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

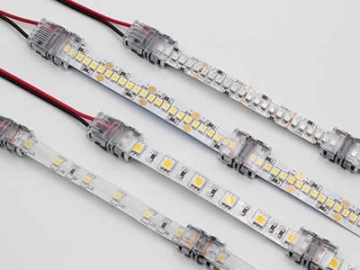

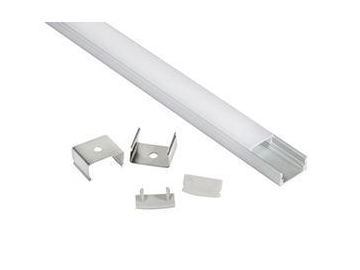

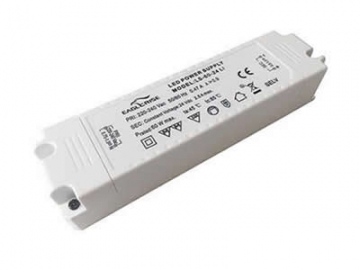

Accessories

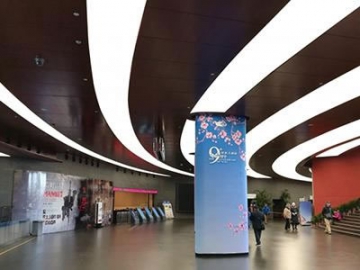

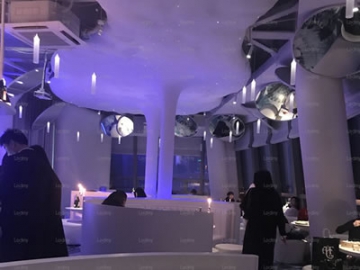

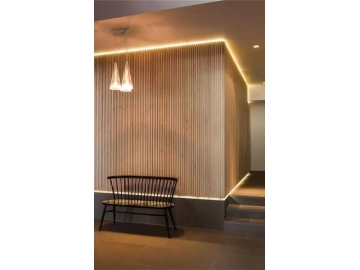

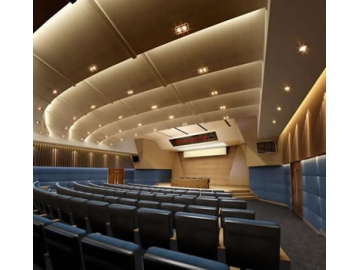

Projects
