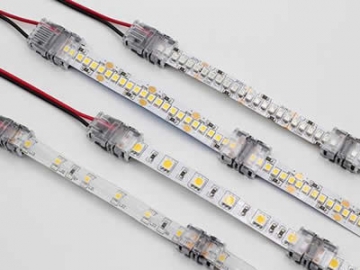

High-efficiency Indoor IP20 2835 SMD Warm White LED Strip Light

: http://ledstripsolution.us/1-3-high-efficiency-warm-white-led-strip-light.html

Key Features

Ambient Temperature:-20℃ to 45℃
Voltage:DC24V
LED pitch--0.19~0.61inch, field cuttable: every 1.31~3.94inch
Length/Reel(M/ft):5m/16.4ft
TM-30-15, CRI 80 allows objects to reflect and display colors similarly to natural light
High luminous efficacy up to 180lm/W, bringing higher brightness under the same power level
Non-waterproof but dustproof, best for indoor lighting
2200-3000K warm white light, perfect for home projects
High color consistency with color tolerance within 5SDCM
Premium 3 Oz copper FPC circuit board, guaranteeing stable performance

*Please contact our sales for the latest details and certifications

Specification

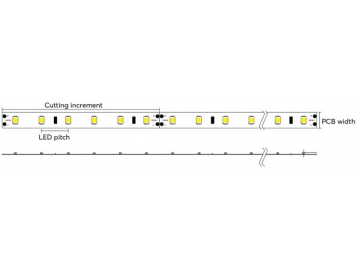

Model	Led Qty	Power	Lumens per feet	Cutting increment	LED pitch	PCB width
FH05W-P0-G1 28HX8x 24V70S W08L05	70LEDs/M	4.8W/M 1.46W/ft	504-590lm/M 154-180lm/ft	100mm 3.94˝	14.3mm 0.56˝	8mm 0.31˝
FH10W-P0-G1 28HX8x 24V140S W08L05	140LEDs/M	9.6W/M 2.93W/ft	1008-1200lm/M 307-366lm/ft	50mm 1.97˝	7.1mm 0.28˝	8mm 0.31˝
FH14W-P0-G1 28HX8x 24V210S W10L05	210LEDs/M	14.4W/M 4.39W/ft	1512-1800lm/M 461-549lm/ft	33.3mm 1.31˝	4.8mm 0.19˝	10mm 0.39˝
FH05W-P0-G1 28HX8x 24V64S W08L05	64LEDs/M	4.8W/M 1.46W/ft	576-696lm/M 176-212lm/ft	125mm 4.92˝	15.6mm 0.61˝	8mm 0.31˝
FH10W-P0-G1 28HX8x 24V128S W10L05	128LEDs/M	9.6W/M 2.93W/ft	1152-1392lm/M 351-474lm/ft	62.5mm 2.46˝	7.8mm 0.3˝	10mm 0.39˝
FH12W-P0-G1 28H2G8x 24V80S W10L05	80LEDs/M	12W/M 3.66W/ft	2020-2260lm/M 615-689lm/ft	100mm 3.94˝	12.5mm 0.49˝	10mm 0.39˝

Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

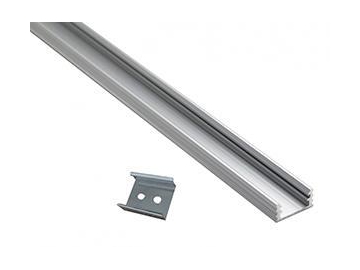

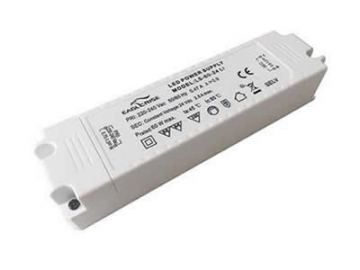

Accessories

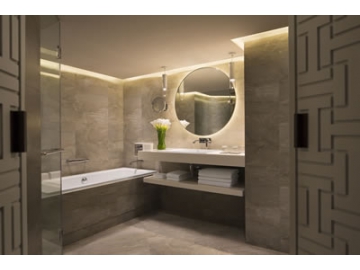

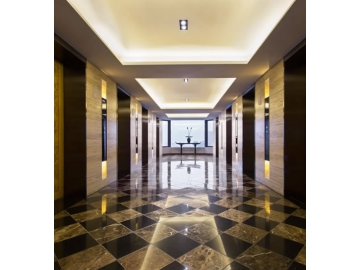

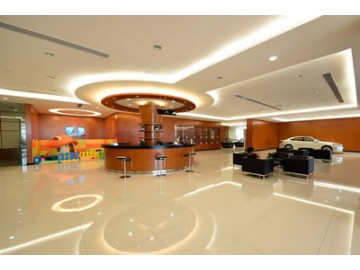

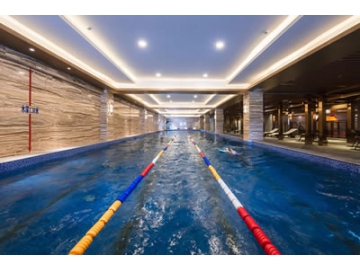

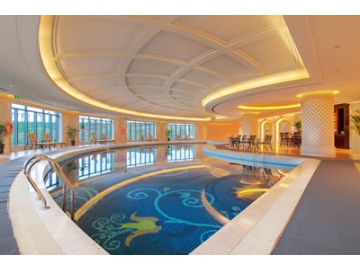

Projects
