LD-5000 Series Strength Equipment
Model: LD-5001
Name: prone leg cur
Dimension (mm): 1612*1135*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg

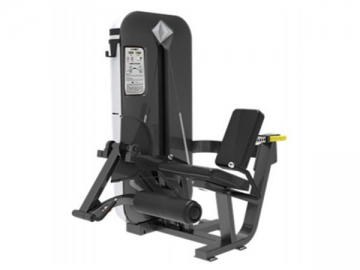

Model: LD-5002
Name: leg extension
Dimension (mm): 1444*1137*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg

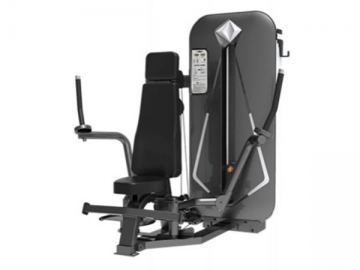

Model: LD-5004
Name: pectoral machine
Dimension (mm): 1694*1094*1653
Standard steel weight stack: 100kg (steel)
Net weight: 275kg

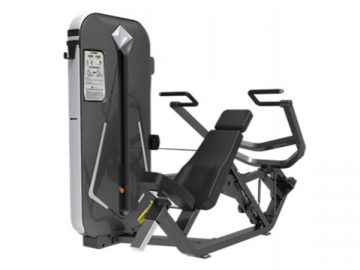

Model: LD-5006
Name: shoulder press
Dimension (mm): 1885*1321*1653mm
Standard steel weight stack: 100kg (steel)
Net weight: 240kg

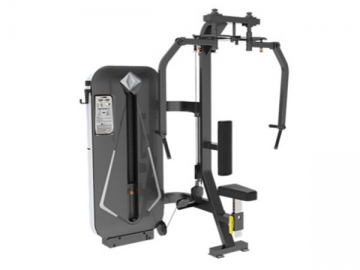

Model: LD-5007
Name: pearl delt/pec fly
Dimension (mm): 1630*1210*2093
Standard steel weight stack: 100kg (steel)
Net weight: 260kg
Model: LD-5008

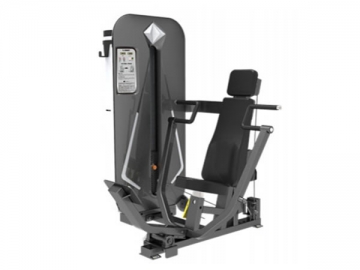

Name: vertical press
Dimension (mm): 1371*1309*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg

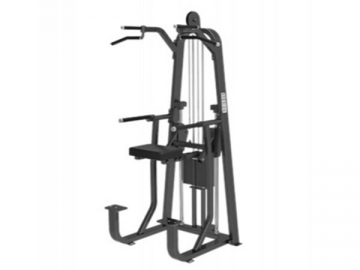

Model: LD-5009
Name: dip/chin assist
Dimension (mm): 1402*1134*2341
Standard steel weight stack: 100kg (steel)
Net weight: 290kg

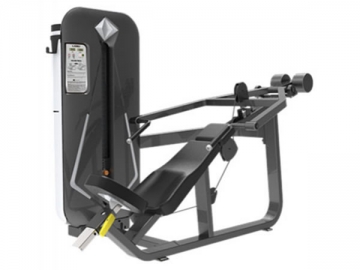

Model: LD-5013
Name: incline press
Dimension (mm): 2172*1443*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg
Model: LD-5016

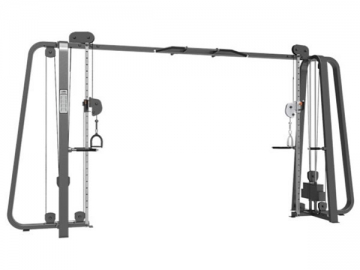

Name: adjustable crossover cable
Dimension (mm): 4503*1084*2312
Standard steel weight stack: 80*2kg (steel)
Model: LD-5019

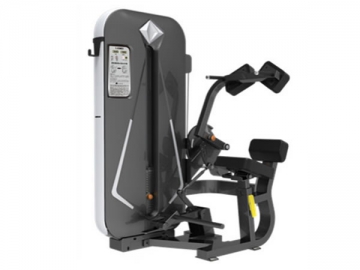

Name: abdominal isolator
Dimension (mm): 1219*931*1653
Standard steel weight stack: 100kg (steel)
Net weight: 210kg

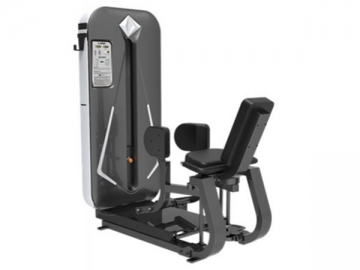

Model: LD-5021
Name: abductor
Dimension (mm): 1532*793*1653
Standard steel weight stack: 70kg (steel)
Net weight: 215kg

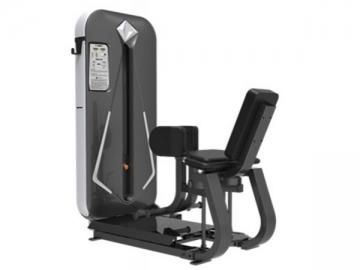

Model: LD-5022
Name: adductor
Dimension (mm): 1532*793*1653
Standard steel weight stack: 70kg (steel)
Net weight: 215kg
Model: LD-5023

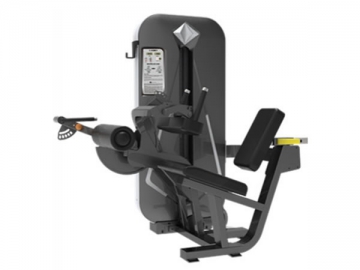

Name: seated leg curl
Dimension (mm): 1640*1104*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg
Model: LD-5026

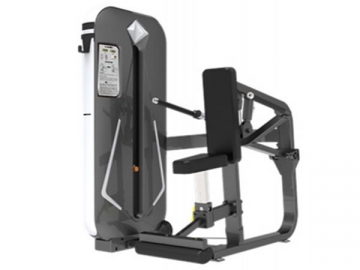

Name: seated dip
Dimension (mm): 1487*1296*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg

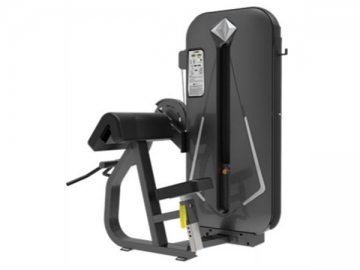

Model: LD-5030
Name: 45° camber curl
Dimension (mm): 1259*913*1653
Standard steel weight stack: 70kg (steel)
Net weight: 190kg
Model: LD-5031

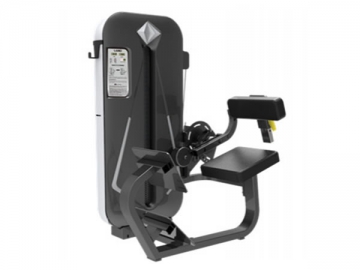

Name: back extension
Dimension (mm): 1321*911*1653
Standard steel weight stack: 100kg (steel)
Net weight: 260kg

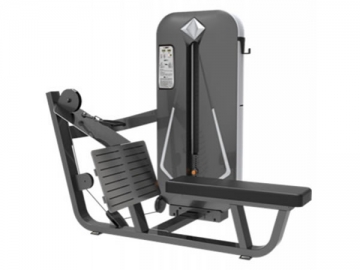

Model: LD-5033
Name: long pull
Dimension (mm): 1973*1147*1653
Standard steel weight stack: 100kg (steel)
Net weight: 280kg
Model: LD-5034

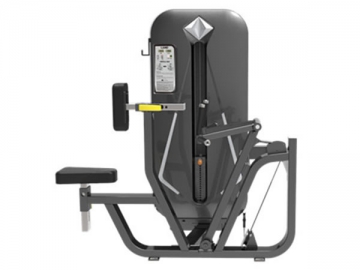

Name: vertical row
Dimension (mm): 1515*1228*1653
Standard steel weight stack: 100kg (steel)
Net weight: 280kg

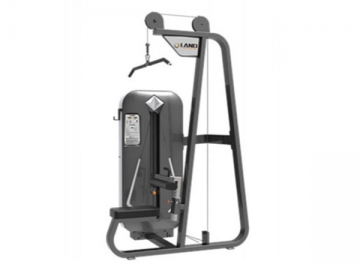

Model: LD-5035
Name: pull down
Dimension (mm): 1466*1490*2341
Standard steel weight stack: 100kg (steel)
Net weight: 260kg
Model: LD-5018

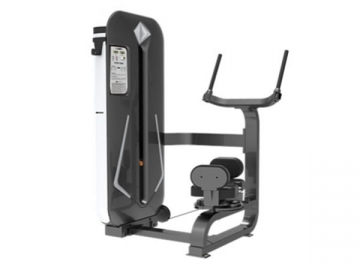

Name: rotary torso
Dimension (mm): 1007*1129*1653
Standard steel weight stack: 100kg (steel)
Net weight: 270kg
Main Advantages
1. Solid structure and reliable quality
2. The well-chosen raw materials have guaranteed the quality and performance of the workout equipment to a large extent.
3. Land Fitness has integrated the ergonomic factors into the gym fitness equipment to ensure that its moving track is compatible with the nature condition of human body
| Cushion color | brown/ black/ orange |
| Cable | inner metal diameter: 4.8mm; outer thickness: 1.2mm |
| Square tube | 50*100mm; thickness: 3mm; high strength steel tube oval and internally lubricated cables |
| Pulley | Nylon |
| Welding technique | OTC welding |
| Certificates | CE, ISO9001, RoHS |
| Customization service | available |
| Powder coating | 2 rounds (silver/ black/ dark grey/ white/ red) |
| Painting color | Optional |
| Applications | gym, exercise club, hotel gym, fitness center |
| Tire | PU foam with synthetic leather |
| Weight stack | made of steel |
| Material | Q235, 60*120*3mm |
Details of the Gym Strength Equipment
1. The frame
● Streamlined design with 50*100*2.5mm high-strength stainless steel flat oval tube
● We have welded the frame directly on the steel base to make the system stable
● The rubber mat is set not only to protect the floor but also to prevent slipping
● All of the spare parts are cut with high precision
● Meticulous polishing is required for each of the welding points
● Stability of the strength training equipment is enhanced with the powder coating treatment
● Light steel weight stack & smooth electroplated slider
2. Seat and backrest
● EVA foam injection molding technique is employed for the cushion to avoid deformation
● To make the cushion more durable, all of the edges have been folded and sewed
3. Rubber mat under the base of the fitness equipment
