LD-8000 Series Strength Equipment
Model: LD-8001
Name: prone leg cur
Dimension (mm): 1612*1135*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg
Model: LD-8002

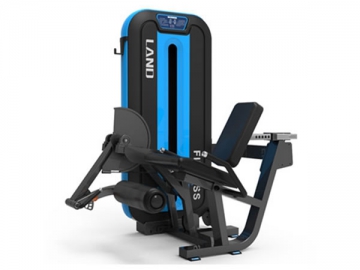

Name: leg extension
Dimension (mm): 1444*1137*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg

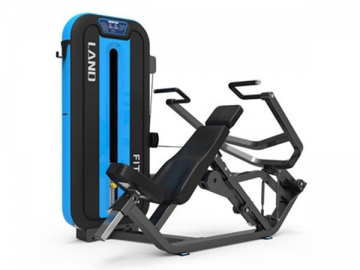

Model: LD-8006
Name: shoulder press
Dimension (mm): 1885*1321*1653
Standard steel weight stack: 100kg (steel)
Net weight: 240kg
Model: LD-8008

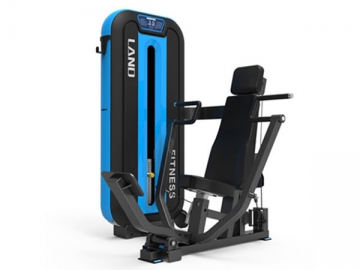

Name: vertical press
Dimension (mm): 1371*1309*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg

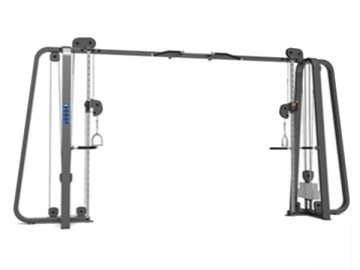

Model: LD-8016
Name: adjustable crossover cable
Dimension (mm): 4503*1084*2312
Standard steel weight stack: 80*2kg (steel)
Net weight: 400kg

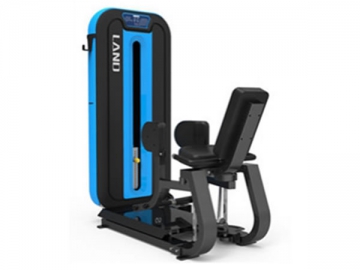

Model: LD-8021
Name: abductor
Dimension (mm): 1532*793*1653
Standard steel weight stack: 70kg (steel)
Net weight: 215kg

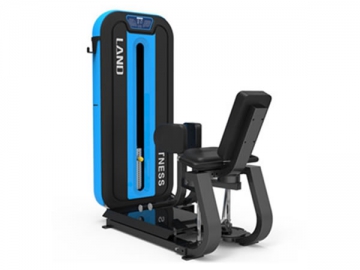

Model: LD-8022
Name: adductor
Dimension: 1532*793*1653
Standard steel weight stack: 70kg (steel)
Net weight: 215kg
Model: LD-8023

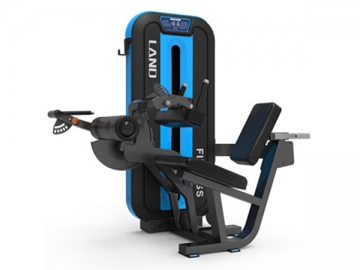

Name: seated leg curl
Dimension (mm): 1640*1104*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg

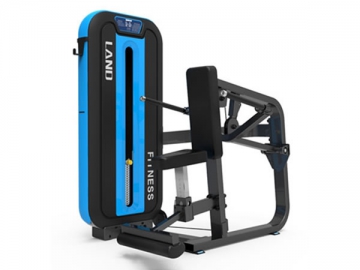

Model: LD-8026
Name: seated dip
Dimension (mm): 1487*1296*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg
Model: LD-8013

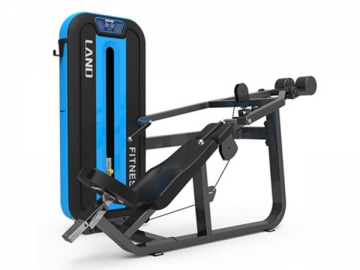

Name: incline press
Dimension (mm): 2172*1443*1653
Standard steel weight stack: 100kg (steel)
Net weight: 230kg
Features
1. This series of strength equipment is targeted at high-end users. Land Fitness has obtained a design patent for it.
2. Prudent design and reliable quality
3. The raw materials are well chosen to ensure the equipment quality
4. Taking the ergonomic factors into consideration, the moving track of the fitness equipment is designed to match the nature movement state of human body.
| Cushion color | brown/ black/ orange |
| Cable | inner metal diameter: 4.8mm; outer thickness: 1.2mm |
| Square tube | 50*100mm; thickness: 3mm; high strength steel tube oval and internally lubricated cables |
| Pulley | Nylon |
| Welding technique | OTC welding |
| Certificate | CE, ISO9001, RoHS |
| Customization service | available |
| Powder coating | 2 rounds (silver/ black/ dark grey/ White/ Red) |
| Painting color | optional |
| Applications | gym, exercise club, fitness center, hotel gym |
| Stuffing | PU foam with synthetic leather |
| Weight stack | made of steel |
| Material | Q235, 60*120*3 mm |
Details of the Strength Machine

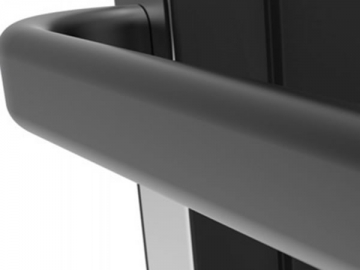

1. The frame
● Streamlined design with 50*100*T2.5mm high-strength stainless steel flat oval tube
● With the frame welded directly on the steel base, the stability of the gym exercise equipment can be guaranteed
● The rubber mat set under the machine can both protect the floor and prevent the machine from slipping
● All of the components are precisely cut
● A meticulous polishing is needed for the welding points to keep them aesthetic
● The powder coating treatment makes the gym fitness equipment rather durable
● Lightweight steel weight stack & smooth electroplated slider

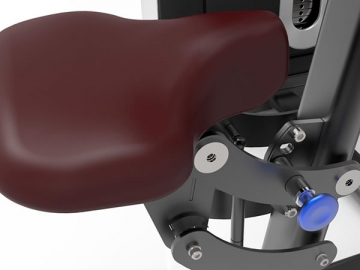

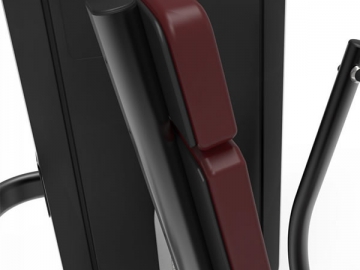

2. Seat and backrest
● The cushion will not get deformed with the EVA foam injection molding technique
● Durability of the cushion is enhanced since all of the edges have bene folded and sewed
3. Rubber mat under the strength training machine

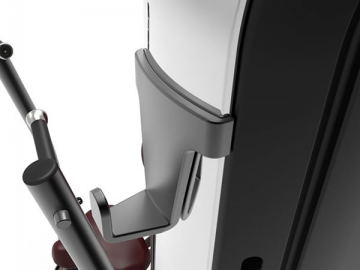

Other Parts

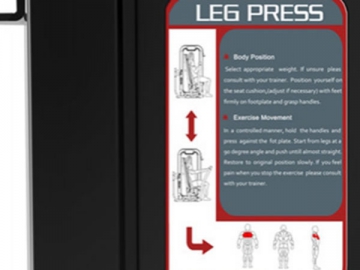

The specific instructions provide you the most professional training guide
