Description
High mounted stop lamps are mounted on the upper rear of busses to warn vehicles behind the bus of braking and stopping, in order to prevent rear end accidents. Consisting of an S3-027 high mounted stop lamp and a surface mounting housing, the lamp and the housing are together attached to the vehicle. The color can be customized to match the color of the vehicle. With a 9mm slim design, it is suitable for a small space.

Product selection:

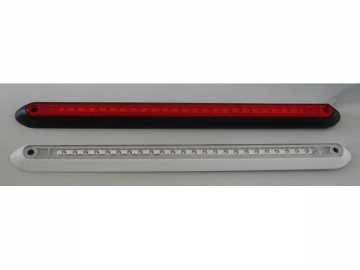

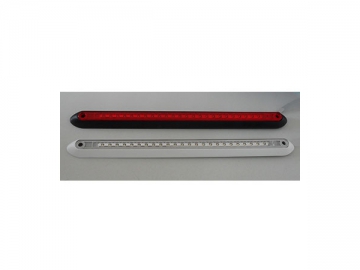

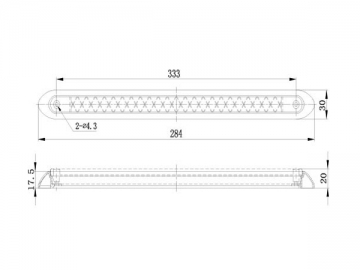

S3-027
S3-027

    Specification:
    Operating Voltage:DC12V,DC24V
    Operating Temperature:-40~65℃
    Light Source:24pcs of high light efficiency SMT LED
    UV resistant PC outer lens
    Len color:red lens, clear lens (optional)
    IP67
    Comply with ECE/ADR/SAE/GB requirements, E-Mark approval
    Install and Fixed:Recessed
    Surface mounting housing: UV resistant PC
    Optional color: white, black or customized.
    E-Mark approval
    Fixed Permanent mount or more convenient to fix with 3M tape

    Applications:
    The high mounted stop lamp is most often used on busses, trailers and trucks.

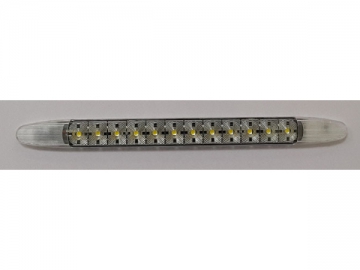

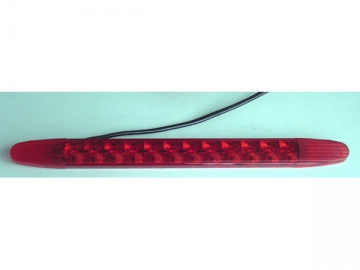

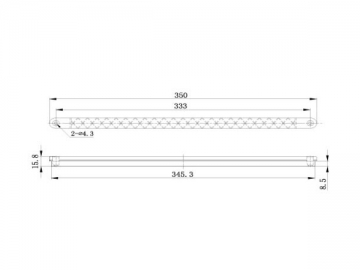

    S3-028
    S3-028

    S3-028 Red lens, Sided wire
    S3-028-C White lens, Sided wire
    S3-028-CM White lens, Center wire
    S3-028-M Red lens, Center wire

    Specifications
    Operating Voltage: DC12V, DC24V
    Operating Temperature: -40~65℃
    Light Source: 12 pcs of high light efficiency SMT LED, red light
    UV resistant PC outer lens
    Len color: red lens, clear lens (optional)
    IP67
    Comply with ECE/ADR/SAE/GB requirements
    E-Mark approved
    Fixation: Permanent mounting or more convenient to fix with 3M tape

    Applications
    This line of high mounted stop lamp is often found on buses, trailers, trucks, recreational vehicles and special vehicles.
