    Technical Specifications
    Power Range: 120~180PS
    Model Unit EuroIII/IV
    SC4H120
    Q4    		 SC4H140
    Q4    		 SC4H160
    Q4    		 SC4H170
    Q4    		 SC4H180
    Q4
    Type
    		4 In-line, Electronic-controlled, 4-Valve, Dry Cylinder-liner, 4-Stroke,
    Water-cooling, Rear Mounted Gear Train
    Aspiration mm×mm TCI
    Bore×Stroke L 105×124
    Total Displacement
    		4.3
    Rated Power/Rated Speed kW/r/min 88/2500 105/2300 118/2500 125/2300 132/2300
    Mini Fuel Consumption g/Kw.h ≦192
    Maximum Torque/Speed N.m/r/min 400/1200~
    1600    		 500/1200~
    1600    		 500/1200~
    1600    		 600/1200~
    1600    		 660/1200~
    1600
    Noise dB(A) ≦95

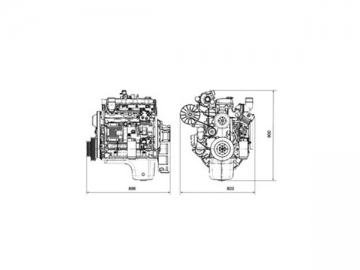

    Overall Dimension mm Length: 896 Wide: 725 High: 900
    Weight kg 380
