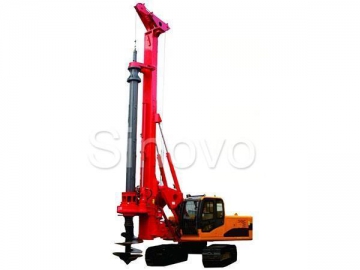

TR60 Rotary Drilling Rigs
TR60 rotary drilling is new designed self-erecting rig, which adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance of TR60 rotary drilling rig has reached advanced world standards.
The corresponding improvement on both structure and control, which makes the structure more simple and compact the performance more reliable and operation more humanized.
TR60 Main Technical Specification| TECHNICAL DATA TR60 | ||
| Engine | ||
| Model | model | Cummins QSB3.9-C130-31 |
| Rated power/Speed | KW/rpm | 97/2200 |
| Rotary Drive | ||
| Max torque of rotary head | kN.m | 60 |
| Drilling speed | r/min | 0-80 |
| Spin off speed | r/min | 80 |
| Main performances | ||
| Max drilling depth | m | 21 |
| Max hole diameter | mm | Φ1000 |
| Pull-Down Cylinder | ||
| Max. push | kN | 90 |
| Max. pull | kN | 90 |
| Storke | mm | 2000 |
| Main winch | ||
| Max pull force of main winch | kN | 80 |
| Max pull speed of main winch | m/min | 80 |
| Wire line diameter of main winch | mm | 18 |
| Vice winch | ||
| Max pull force of vice winch | kN | 40 |
| Max pull speed of vice winch | m/min | 40 |
| Wire line diameter of vice winch | mm | 10 |
| Mast inclination | ||
| Mast side raking | ︒ | 4 |
| Mast forwards | ︒ | 4 |
| Mast backwards | ︒ | 15 |
| Undercarriage | ||
| Max traveling speed | km/h | 2.8 |
| Max turnning speed | r/min | 3.5 |
| Chassis width | mm | 2600 |
| Crawler grounding length | mm | 3210 |
| Tracks width | mm | 600 |
| Working pressure | Mpa | 32 |
| Over weight | T | 24 |
| Dimension | ||
| Working position (LxWxH) | mm | 6100x2600x1200 |
| Travel position (LxWxH) | mm | 10100x2600x3450 |
It is suitable for the following application
Drilling with telescopic friction or interlocking Kelly bar – standard supply.
Features and advantages of TR60
1. The power head has the function of high-speed soil rejection; the maximum speed can reach to 80r/min. It completely solves the problem of soil rejection difficulty for small diameter pile hole construction.
2. The main and vice winch are all located in the mast which are easy to observe the direction of the rope. It improves the mast stability and construction safety.
3. Cummins QSB3.9-C130-31 engine is chosen to meet the state III emission requirements with economic, efficient, environmentally friendly and stable characteristics.
4. The hydraulic system adopts the international advanced concept, specially designed for the rotary drilling system. Main pump, power head motor, main valve, auxiliary valve, walking system, rotary system and the pilot handle are all import brand. The auxiliary system adopts the load-sensitive system to realize the on-demand distribution of the flow. Rexroth motor and balance valve are chosen for the main winch.

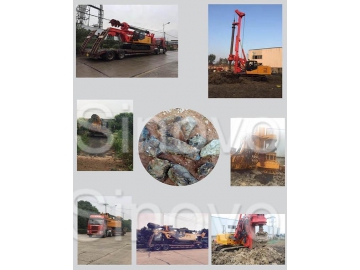

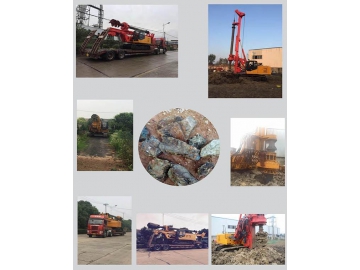

5. It is no need to disassemble the drill pipe before transporting. The whole machine can be transported together.
6. All the key parts of the electric control system (such as display, controller, and the inclination sensor) adopt imported components of international famous brands, and use air connectors to make special products for domestic projects.
