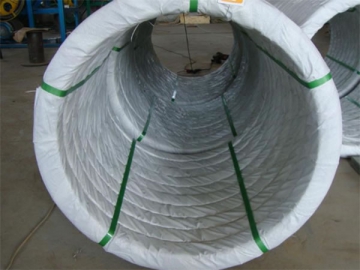

Oval Wire
Steel Wire / Coated Wire / Galvanized Wire
Specifications
Oval Wire Diameter
3.0*3.9mm;2.7*3.4mm; 2.4*3.0mm ; 2.2*2.7mm ; 2.0*2.6mm.
Raw Materials
45# steel wire rod or SAE1045 steel
Finish
Hot dipped galvanized
Zinc Coating
40g/m2-60g/m2 ; 240-270g/m2
Coil Packing
1000 meter per coil for 2.4mm*3.0mm; 1250 meter per coil for 2.2mm*2.7mm.
Breaking Load
600kgf/mm2, 700kgf/mm2, 800kgf/mm2 ; max.1400kgf/mm2.
Other specification can be made on your requirements.
| Presentation | Coil Weight | Diameter | Minimum breaking stress | Zinc Coating |
| m/coil | kg | mm | kg | |
| 1000 | 43 | 3,0 - 2,4 | 800 | superior |
| Presentation | Coil Weight | Diameter | Minimum breaking stress | Zinc Coating |
| m/coil | kg | mm | kg | |
| 1000 | 43 | 3,0 - 2,4 | 725 | standard |
| Presentation | Coil Weight | Diameter | Minimum breaking stress | Zinc Coating |
| m/coil | kg | mm | kg | |
| 600 | 43 | 3,9 - 3,0 | 1200 | standard |
| Presentation | Coil Weight | Diameter | Minimum breaking stress | Zinc Coating |
| m/coil | kg | mm | kg | |
| 1000 | 36 | 2,7 - 2,2 | 600 | standard |
| Presentation | Coil Weight | Diameter | Minimum breaking stress | Zinc Coating |
| m/coil | kg | mm | kg | |
| 1000 | 36 | 2,2 - 2,7 | 345 | standard |
