C Frame Stamping Press (25-60 Tons), API Series

: http://stampingpress4u.com

High Speed Press Machine | Stamping Press for Home Appliances | 25 - 60 Metric Tons Capacity

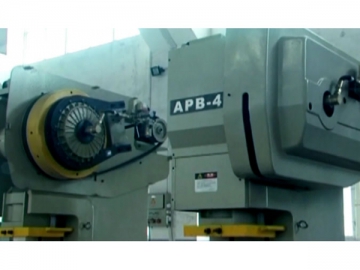

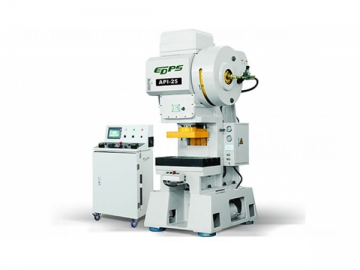

Our API series C frame stamping press is one of our most popular lines of high precision punching machine because of its high speed processing ability. The precision and speed of the metal stamping press make it ideal for producing large quantities of small electronic parts for computers, appliances, motors and other small precision sheet metal stamping parts. This series consists of three models, the API-25, API-45 and API-60 power press machine.

Performance features

1. The structure of the C frame stamping press is produced using a high strength casting process to guarantee long term precision.
2. The metal forming machine's three-circle guide pillar slider structure is made from alloy steel and utilizes forced lubrication to keep wear parts intact for extended periods of use as well as to regulate temperature.
3. A dynamic equilibrium system is used to balance axles and minimize vibration generated when the slider runs to control stability.
4. Manual mold height adjustment is equipped with a mold height indicator and oil-pressure clamping device.
5. Intelligent interface (electronic cam rotary encoder) operation is convenient and highly accurate.
6. Operating functions are shown on an LCD display.
7. Highly sensitive and reliable clutch/brake and top duplex magnetic valve, guarantee precision and safety for operation.
8. With a thorough electric loop design, our mechanical press machine can be matched with various automatic devices, to reduce cost and improve efficiency.

Standard configuration

1.Top stop device
2.Manual slide adjust device
3.Die height indicator
4.Frequency converter
5.Programmable controller (PLC)
6.Touch screen (pre-set, total count, angle indicator)
7.Encoder (electronic), reserved 2 groups
8.Operation box
9.Air source connector
10.Mold disconnecting device
11.Main motor (adjustable speed)
12.Mode locking device
13.Mechanical crank angle indicator
14.Forced circulation oil device
15.Tool box
16.Operating manual
17.Power socket
18.Independent electric control cabinet

Optional configuration

1.Anti-vibration foot
2.Feeder
3.Feeding rack
4.Oil lubricating device
5.Bottom dead center detector
6.Oil cooler
7.Mold light
8.Air jetting device

Overall dimension

Model	A	B	C	D	E	F	G	P	Q	R	S	T	U	V	W	X	Y
API-25	205	300	150	212	190	102.5	25	600	300	200	180	100	300	150	30	30	18
API-45	320	420	150	340	260	160	40	700	415	240	240	120	350	205	40	37	22
API-60	340	550	240	360	300	170	40	840	470	320	270	160	420	235	40	37	22

Technical parameters of C Frame Stamping Press

Name	Unit	API-25		API-45		API -60
Model		A	B	A	B	A	B
Capacity	ton	25		45		60
Stroke	mm	30		30		30
Stroke per minute	s.p.m	200-600	200-800	200-500	200-700	200-400	200-600
Die height	mm	210		230		305
Bolster	mm	600×300×80		700×415×100		840×470×105
Area of slide	mm	300×205		420×320		550×340
Slide adjustment	mm	30		30		30
Bed opening	mm	200×100		240×120		320×160
Motor	Kw	3.7		5.5		7.5
Gross weight	kg	3000		4500		8000
Lubrication		Forceful Automation		Forceful Automation		Forceful Automation
Speed control		Inverter		Inverter		Inverter
Clutch & brake		Air & Friction		Air & Friction		Air & Friction
Top stop device		Standard		Standard		Standard
Anti-vibration system		Optional		Optional		Optional
