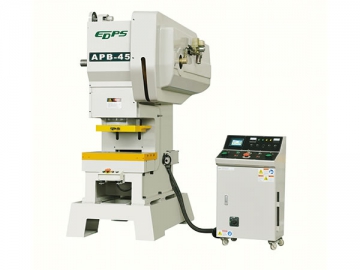

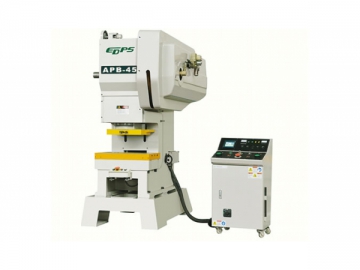

High Speed Press | Small Precision Stamped Parts | 25 - 45 Metric Tons Capacity

These mechanical press machines are produced with 2 models which stamping capacity are 25 tons and 45 tons. The stamping precision of these high speed precision press machines are GB (JIS) 1 class rated and they are suitable for producing small and medium sized stamping parts and other processing applications.

Performance features

The body of the motor rotor stamping press is constructed from a special cast iron alloy. The frame undergoes a special heat processing treatment to minimize internal stress and ensure high rigidity and precision.

Meticulously engineered sliders are ensure operation precision and stability.

TheC frame stamping press's operation drive disk assembly adopts a centralized detection and automatic forced lubrication system to realize real-time control and self-protection.
Adopting a highly sensitive and reliable clutch/brake and top duplex magnetic valve, the power press machine guarantees precision and safety for operation.

European standard electric loop design.

The punching machine’s structural design is engineered for the convenience of realizing automatic production, reducing operating cost, and improving efficiency.

Standard configuration

1. Die disconnecting device
2. Air jetting device
3. Electric lubrication device
4. Manual slide adjustment device
5. Counter

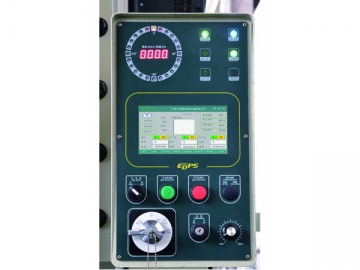

6. Programmable logical controller
7. Slide and mould balancing device
8. Rotary cam switch
9. Crank angle indicator
10. Air source connector

Optional configuration

1. Anti-vibration foot
2. Frequency converter
3. Die lighting device
4. Preset counter
5. Feeder
6. Misfeed detection device
7. Electronic cam display
8. PAC100 control system
9. Man-machine control system

Technical parameters
Name Unit APB-25 APB-45
Capacity ton 25 45
Stroke mm 30 30
Die height mm 200 240
Stroke per minute s.p.m 200-400 200-400
Slide adjustment mm 50 75
Slide area mm 300×245×50 460×340×70
Bolster area mm 530×310×70 720×460×80
Bed opening (LR×FB) mm 300×160 360×200
Main motor kw×p VS2.2×4 VS5.5×4
Ma×. weight of upper die kg 30 150
Press dimension(H×W×H) mm 1100×760×1800 1700×1000×2400
Press weight ton 1.8 3.7
Press precision GB(JIS)1 class GB(JIS)1 class
