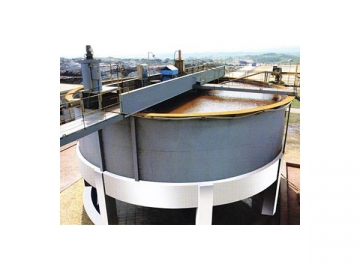

High Efficiency Sludge Thickener

: http://hbminingplant.com/5-1-wastewater-treatment-tank.html

Application
High efficiency sludge thickener is properly used to dewater ore concentrate and tailings of ore treatment plant, which can increase the pulp density from 20-30% to 40-70%.

Applicable materials
Copper ore, magnetite, hematite, lignite, gold ore, iron ore and so on.

Parameters

Type	Inside diameter of tank(mm)	Tank height (mm)	Sediment area(m²)	Rake arm rotation speed (r/min)	Rake arm lifting height (mm)	Driving motor type	Driving motor power (kw)	Lifting motor type	Lifting motor power (kw)	Weight of steel tank(kg)	Weight (kg)
GX-3.6	3600	1700	10.2	1.1	200	Y100L-6	1.5	Y100L-6	1.5	2829	6650
GX-5.18	5182	2134	21	0.4	300	Y132S-6	3	PZ0.8AB	0.8	5342	10460
GX-6	6000	2500	28.3	0.8	300	Y132M1-6	4	Y132S-8	2.2	6506	10573
GX-7.5	7500	2800	44.1	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	10258	17320
GX-9	9000	2800	63.6	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	15980	23680
GX-12	12000	3600	110	0.35	300	Y132M-4	7.5	Y100L1-4	2.2	25589	42756
GX-15	15000	4000	177	0.15	300	YCT200-4B	7.5	Y112M-6	2.2	36050	59000
GX-18	18000	4400	254	0.13	400	YCT200-4B	7.5	YTC752A-44	5.5	52485	73296
GX-20	20000	4400	314	0.13	400	YCT200-4B	7.5	YTC752A-44	5.5	59365	76020

(Please enter your desired product model)

Advantages

High efficiency sludge thickening system adds flocculant which can increase the diameter of sedimentary solid particle in order to accelerate sedimentation rate.
It adds deaerating tank in order to avoid solid particles attaching to bubbles.
The material thickening equipment is equipped a receiving barrel which can receive materials so that the feeding ore slurry will fall evenly and steadily and it can avoid splash phenomenon.
We can provide flocculant addition automation system additionally.
