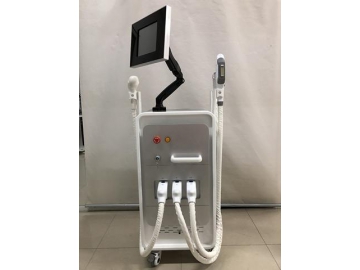

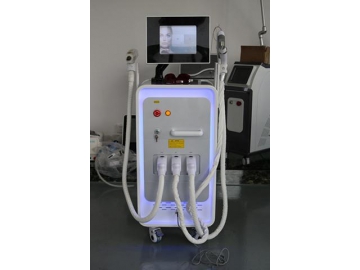

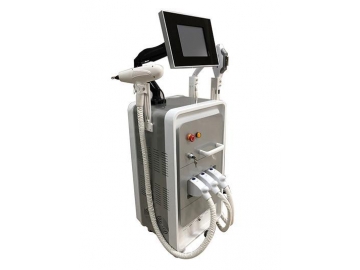

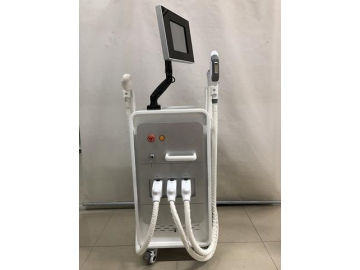

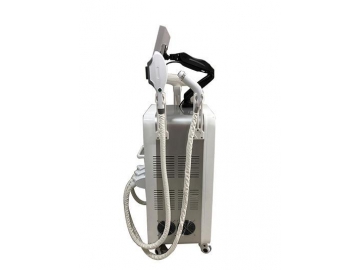

IPL E-light Radio Frequency Nd YAG Laser Beauty Machine
The IPL E-light radio frequency Nd YAG laser beauty machine achieves different functions by integrating three cosmetic techniques.
RF
The RF technique promotes collagen protein growth by heating the dermis, and thus removing wrinkles and tightening skin.
IPL/E-light
The IPL/E-light produces multi wavelength, high-power pulse, and broad spectrum colored lights, which can penetrate from the epidermis into the dermis and decompose pigments and destroy hair follicles, thus achieving the removal of red blood vessel spots, freckle lightening and hair removal.
Nd YAG
The laser can directly reach the dermis layer by making pigments expand and break into small fragments that are then naturally metabolized from the body, thus removing freckles and tattoos.
| RF output power | 300W |
| Energy | 0-50J/cm2 (adjustable) |
| Probe | (Bi-polar) & monopolar |
| 15mm | for eyes & face |
| 32mm | for body |
| Filter | Frequency | ipl energy | rf energy |
| 640nm | 2 | 10-20j | 2j |
| 690nm | 2 | 15-28j | 2j |
| 530nm | 1 | 8-15j | 2j |
| 580nm | 2 | 15-25j | 2j |
| 560nm | 2 | 10-20j | 2j |
| 430nm | 1 | 10-20j | 2j |
| 480nm | 1 | 10-20j | 2j |
| Wavelength | 1064nm/532nm/1320nm |
| Energy level | 0-2000mj |
| Pulse duration | 10ns |
| Frequency | 1-10HZ |

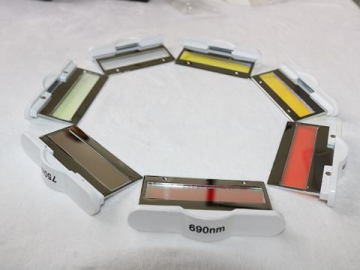

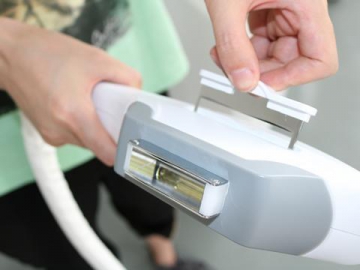

- IPL/E-light wave length filter

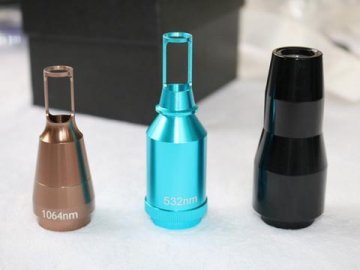

- Nd yag treatment tip

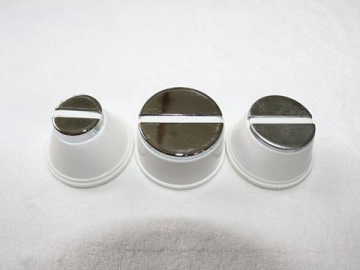

- RF handle replacement tips
-
-
-
- The RF mode features a stable power output, while the treatment depth is adjustable between 0.5mm and 3mm for accurate control of the treatment site.

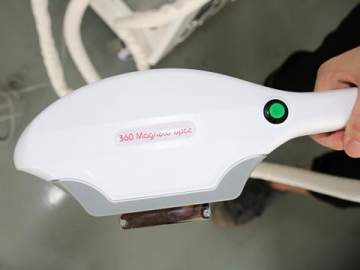

- The IPL/E-light mode can quickly switch into different treatment methods simply by replacing different filters, with a total of 7 filters available. In addition, the handle can be used up to 500,000 times. This mode achieves a fast hair removal effect.
- Nd YAG has three treatment tips for customers to choose from, with a wavelength of 1064nm, 532nm, and 1320nm respectively. The highest energy level reaches 2000mj, which can efficiently solve pigmentation problems.
- If any fault appears, the machine will automatically alarm to make operation processes safer and more reliable.

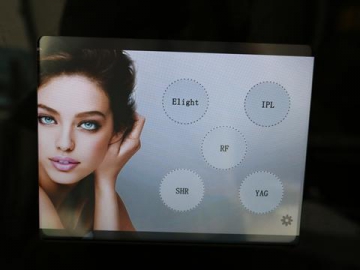

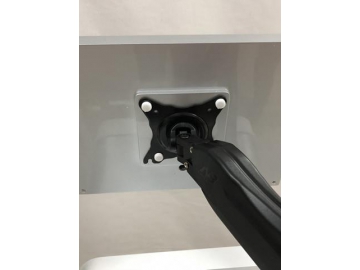

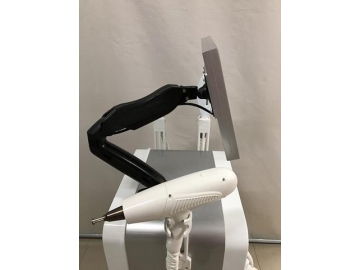

- The height and angle of the operation screen can be adjusted arbitrarily to facilitate operation.
