Description

Using the explosive effects of Q Switch Nd Yag Laser, the laser can infiltrate the the epidermis into the dermis and decompose pigmentation into small particles. Later the pigment particles are eliminated through the metabolic system, so as to achieve effective treatment of pigmentation on the epidermis and dermis.

The laser instrument can also take advantage of the thermal effects of Q switch Nd YAG laser to absorb hemoglobin in capillaries and solve the problem of blockages of capillaries.

Scope of treatment

① 1064nm in wavelength
It can be used in removing freckles, age spots and brown spots. Besides, it is also used in tattoo removal, or removing moles and spots in blue, black or scarlet..

② 532nm in wavelength
It can be used in the treatment of capillary dilatation and the removal of rosacea, especially light reddish brown and pink discoloration. Besides, it is applied in removing freckles and tattoos, or improving other skin pigmentation problems.

Parameters
Output mode Q-switch Pulsed output
Wavelength 1064nm, 532nm
Output energy 1064nn: 100-2000mj
532nm: 100-1000mj
Pulse Duration About 10, and the difference is below 3ns
Frequency 1-10Hz(adjustable)
Single Pulse energy 100mj-2000mj
Safety distance NOHD 1km. Operator must wear goggles
Cooling system Water cooling + air heat exchange
Work mode Continually work with intervals
Spot Size 1-8mm /2-10mm
Temperature 10℃~30℃
Relative humidity Above 75%
Air pressure 860-1060hpa
Power requirement AC 10A, 220v/50Hz
Wastage power 1000VA
Water Distilled water or Pure water
Dimensions 600×400×620mm (not including articulated arm)
Weight 50kg
Advantages of Q Switch Nd Yag Laser Machine
  • The highest frequency of treatment is 10Hz, which requires only a short time. It is less painful to the patients so anesthesia is barely needed during the treatment.
  • It adopts a controllable solid state laser which reaches the standard of medical CE. It is harmless to hair follicles and leaves no scars on normal skin.

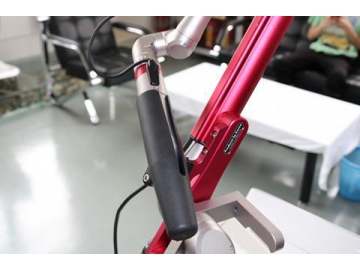

  • The delicate, 360°rotating light guiding arm (articulating arm) can give out smoothly shaped spot, which can also be adjusted freely.
  • The highest energy of the superior laser is 2000mj, which can be adjusted according to the different symptoms of each client.
  • It is of stable quality with no downtime or interruption during normal operation, and it has high return on investment.

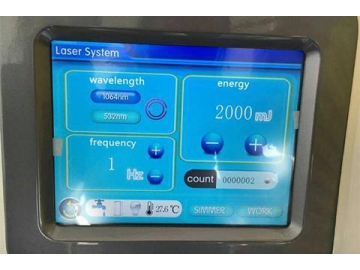

  • Operation system

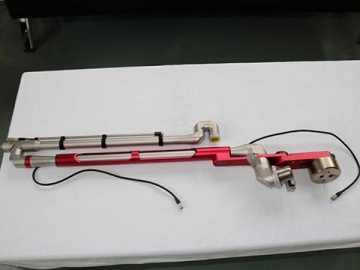

  • Korea arm
Treatment for reference
No Treatment Wavelength Energy(mj) Frequeuency(Hz) Notes Setting
1 Carbon laser peel 1640 200mj 1-3Hz Spot size: 8-10
2 Freckle(not much) 1064 600mj 1-3Hz Spot size: 6-7 5-7times
3 Freckle( much) 1064 600-700mj 1-3Hz Spot size: 7-8 5-7times
4 Pigmentation 1064 100-200mj 1-3Hz
3-4times
5 Tattoo in red and brown 532 200-300mj 1-3Hz Cant do over 2 times in one treatmentarea
6 Tattoo in eyeline 1064 100mj 1-3Hz Cant do over 2 times in one treatmentarea
7 Tattoo in eyeline 1064 100mj 1-3Hz Cant do over 2times in one treatmentarea
8 Tattoo in black, blue 1064 200-300mj 1-3Hz

9 Nevus of ota(in red, yellow, color) 532 200mj 1-3Hz Spot size: 5-6
10 Nevus of ota(in black, blue, brown) 1064 100mj 1-3Hz Spot size: 5-6
11 Pimples 1064 100-200mj 1-3Hz

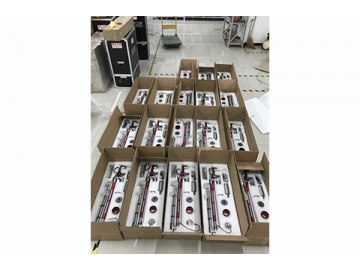

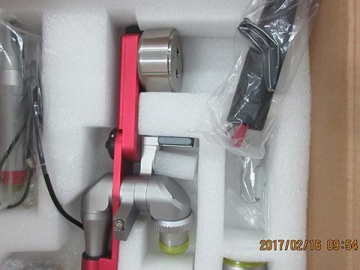

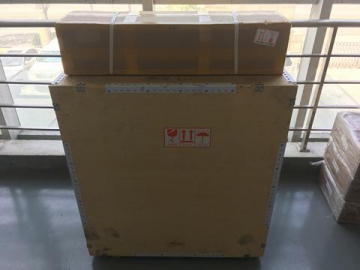

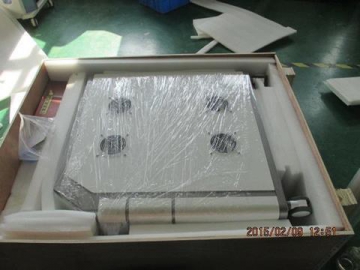

Package and delivery

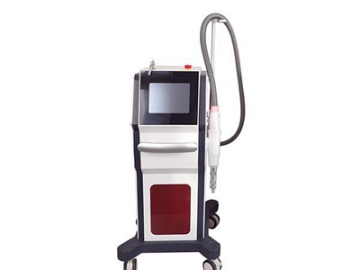

Related products
