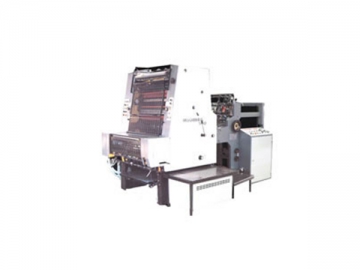

1-color offset Printing Machine
Applications of One-color Offset Printing Machine PZ-1740
Offset Printing Machine PZ-1740 can be used to print in middle and small size of multi-colored printing. For example the cover and inset printing of the top grade books, periodicals, album, the inside and outside packing of high grade smoke, wine, food and medicine and advertisements etc.
Features of One-color Offset Printing Machine PZ-1740
1. The printing machine is equipped with high pile non-stop feeder and delivery;
2. Photoelectric detector is available for double sheet, askew sheet and blank sheet control.
3. Steady feeding and precise printing can be ensured for the rotary feeding roller when the machine works at a high speed.
4. No space roller installation can be ensured.
5. The printing machine is equipped with computer-calculated inking units.
| Max. sheet size (mm) | 540×740 |
| Max. printing size (mm) | 520×725 |
| Gripper margin (mm) | 8-10 |
| Weight of paper (g/m2) | 35-380 |
| Max. Printing speed(s/h) | 10000 |
| Plate size (mm) | 615×740 |
| Blanket size (mm) | 625×770 |
| Thickness of blanket (mm) | 1.9 |
| Feeder pile height(mm) | 900 |
| Delivery pile height (mm) | 420 |
| Overall Dimensions (mm) | 2680×2300×1920 |
| Power of main motor (kw) | 4 |
| Overall power(kw) | 9 |
| Machine weight(kg) | 4800 |
